* Filter the F1 Thread through selecting the -XX options

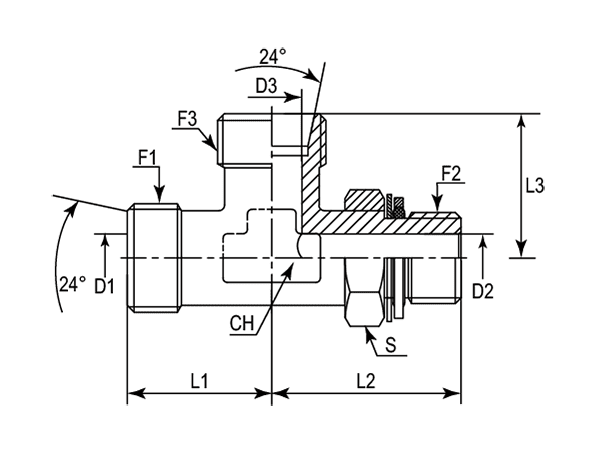

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | F3 (Thread) | D1 | D2 | D3 | L1 | L2 | L3 | CH | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | METRIC | BSPP | mm | mm | mm | mm | mm | mm | mm | mm |
| -01 | DTT-06L-01GQ | M12X1.5 | M12X1.5 | 1/8"-28 | 4.00 | 4.00 | 4.40 | 19.00 | 19.00 | 26.00 | 12.00 | 14 |
| -01 | DTT-06S-02GQ | M14X1.5 | M14X1.5 | 1/4"-19 | 4.00 | 4.00 | 7.50 | 23.00 | 23.00 | 32.00 | 14.00 | 19 |
| -08 | DTT-08L-02GQ | M14X1.5 | M14X1.5 | 1/4"-19 | 6.00 | 6.00 | 7.50 | 21.00 | 21.00 | 32.00 | 14.00 | 19 |
| -08 | DTT-08L-03GQ | M14X1.5 | M14X1.5 | 3/8"-19 | 6.00 | 6.00 | 9.90 | 24.00 | 24.00 | 37.00 | 19.00 | 22 |
| -08 | DTT-08S-02GQ | M16X1.5 | M16X1.5 | 1/4"-19 | 5.00 | 5.00 | 7.50 | 24.00 | 24.00 | 32.00 | 19.00 | 19 |
| -08 | DTT-08S-03GQ | M16X1.5 | M16X1.5 | 3/8"-19 | 5.00 | 5.00 | 9.90 | 24.00 | 24.00 | 37.00 | 19.00 | 22 |
| -10 | DTT-10L-02GQ | M16X1.5 | M16X1.5 | 1/4"-19 | 8.00 | 8.00 | 7.50 | 22.00 | 22.00 | 32.00 | 19.00 | 19 |
| -10 | DTT-10L-03GQ | M16X1.5 | M16X1.5 | 3/8"-19 | 8.00 | 8.00 | 9.90 | 26.00 | 26.00 | 37.00 | 19.00 | 22 |
| -10 | DTT-10L-04GQ | M16X1.5 | M16X1.5 | 1/2"-14 | 8.00 | 8.00 | 12.30 | 27.00 | 27.00 | 44.00 | 22.00 | 27 |
| -10 | DTT-10S-03GQ | M18X1.5 | M18X1.5 | 3/8"-19 | 7.00 | 7.00 | 9.90 | 25.00 | 25.00 | 37.00 | 19.00 | 22 |
| -12 | DTT-12L-02GQ | M18X1.5 | M18X1.5 | 1/4"-19 | 10.00 | 10.00 | 7.50 | 24.00 | 24.00 | 37.00 | 19.00 | 19 |
| -12 | DTT-12L-03GQ | M18X1.5 | M18X1.5 | 3/8"-19 | 10.00 | 10.00 | 9.90 | 24.00 | 24.00 | 37.00 | 19.00 | 22 |
| -12 | DTT-12L-04GQ | M18X1.5 | M18X1.5 | 1/2"-14 | 10.00 | 10.00 | 12.30 | 27.00 | 27.00 | 44.00 | 22.00 | 27 |
| -12 | DTT-12S-03GQ | M20X1.5 | M20X1.5 | 3/8"-19 | 8.00 | 8.00 | 9.90 | 29.00 | 29.00 | 37.00 | 22.00 | 22 |
| -12 | DTT-12S-04GQ | M20X1.5 | M20X1.5 | 1/2"-14 | 8.00 | 8.00 | 12.30 | 29.00 | 29.00 | 43.00 | 22.00 | 27 |
| -14 | DTT-14S-04GQ | M22X1.5 | M22X1.5 | 1/2"-14 | 10.00 | 10.00 | 12.30 | 30.00 | 30.00 | 44.00 | 22.00 | 27 |
| -15 | DTT-15L-03GQ | M22X1.5 | M22X1.5 | 3/8"-19 | 12.00 | 12.00 | 9.90 | 28.00 | 28.00 | 39.00 | 22.00 | 22 |
| -15 | DTT-15L-04GQ | M22X1.5 | M22X1.5 | 1/2"-14 | 12.00 | 12.00 | 12.30 | 28.00 | 28.00 | 44.00 | 22.00 | 27 |
| -16 | DTT-16S-03GQ | M24X1.5 | M24X1.5 | 3/8"-19 | 12.00 | 12.00 | 9.90 | 33.00 | 33.00 | 41.50 | 27.00 | 22 |
| -16 | DTT-16S-04GQ | M24X1.5 | M24X1.5 | 1/2"-14 | 12.00 | 12.00 | 12.30 | 33.00 | 33.00 | 47.00 | 27.00 | 27 |
| -18 | DTT-18L-04GQ | M26X1.5 | M26X1.5 | 1/2"-14 | 15.00 | 15.00 | 12.30 | 31.00 | 31.00 | 47.00 | 27.00 | 27 |
| -18 | DTT-18L-06GQ | M26X1.5 | M26X1.5 | 3/4"-14 | 15.00 | 15.00 | 15.00 | 33.00 | 33.00 | 47.00 | 27.00 | 36 |
| -20 | DTT-20S-06GQ | M30X2 | M30X2 | 3/4"-14 | 16.00 | 16.00 | 15.50 | 37.00 | 37.00 | 51.00 | 30.00 | 36 |
| -22 | DTT-22L-06GQ | M30X2 | M30X2 | 3/4"-14 | 19.00 | 19.00 | 15.50 | 35.00 | 35.00 | 51.00 | 30.00 | 36 |
| -22 | DTT-22L-08GQ | M36X2 | M36X2 | 1"-11 | 24.00 | 24.00 | 21.50 | 40.00 | 40.00 | 59.00 | 36.00 | 41 |
| -25 | DTT-25S-06GQ | M36X2 | M36X2 | 3/4"-14 | 20.00 | 20.00 | 15.50 | 42.00 | 42.00 | 57.50 | 36.00 | 36 |
| -25 | DTT-25S-08GQ | M36X2 | M36X2 | 1"-11 | 20.00 | 20.00 | 21.50 | 42.00 | 42.00 | 56.00 | 36.00 | 41 |
| -28 | DTT-28L-08GQ | M36X2 | M36X2 | 1"-11 | 24.00 | 24.00 | 21.50 | 38.00 | 38.00 | 56.00 | 36.00 | 41 |
| -28 | DTT-28L-10GQ | M36X2 | M36X2 | 1-1/4"-11 | 24.00 | 24.00 | 27.50 | 44.50 | 44.50 | 60.50 | 41.00 | 50 |
| -30 | DTT-30S-08GQ | M42X2 | M42X2 | 1"-11 | 25.00 | 25.00 | 21.50 | 49.00 | 49.00 | 57.00 | 41.00 | 41 |
| -30 | DTT-30S-10GQ | M42X2 | M42X2 | 1-1/4"-11 | 25.00 | 25.00 | 27.50 | 49.00 | 49.00 | 59.00 | 41.00 | 50 |
| -35 | DTT-35L-10GQ | M45X2 | M45X2 | 1-1/4"-11 | 30.00 | 30.00 | 27.50 | 45.00 | 45.00 | 65.00 | 48.00 | 50 |
| -38 | DTT-38S-12GQ | M52X2 | M52X2 | 1-1/2"-11 | 32.00 | 32.00 | 33.00 | 57.00 | 57.00 | 66.00 | 55.00 | 55 |
| -42 | DTT-42L-12GQ | M52X2 | M52X2 | 1-1/2"-11 | 36.00 | 36.00 | 33.00 | 51.00 | 51.00 | 66.00 | 55.00 | 55 |
