* Filter the F1 Thread through selecting the -XX options

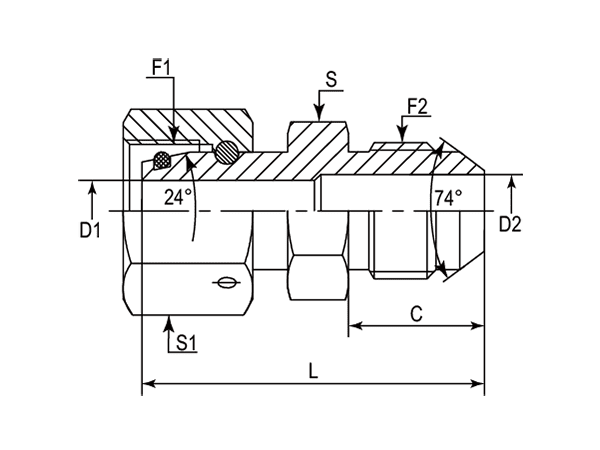

| - | Part Number | F1 (Thread) | F2 (Thread) | C | D1 | D2 | L | S | S1 |
|---|---|---|---|---|---|---|---|---|---|
| - | - | Metric | UNF | mm | mm | mm | mm | mm | mm |
| -01 | DEGE-06L-04JC | M12X1.5 | 7/16"-20 | 13.97 | 3.00 | 3.00 | 35.00 | 14.00 | 14.00 |
| -01 | DEGE-06L-05JC | M12X1.5 | 1/2"-20 | 13.97 | 3.00 | 5.94 | 35.00 | 14.00 | 14.00 |
| -01 | DEGE-06S-04JC | M14X1.5 | 7/16"-20 | 13.97 | 3.00 | 4.37 | 36.00 | 14.00 | 17.00 |
| -08 | DEGE-08L-04JC | M14X1.5 | 7/16"-20 | 13.97 | 4.00 | 4.00 | 35.00 | 14.00 | 17.00 |
| -08 | DEGE-08L-06JC | M14X1.5 | 9/16"-18 | 14.12 | 4.00 | 7.54 | 36.00 | 17.00 | 17.00 |
| -08 | DEGE-08S-04JC | M16X1.5 | 7/16"-20 | 13.97 | 4.00 | 4.00 | 36.00 | 14.00 | 19.00 |
| -08 | DEGE-08S-06JC | M16X1.5 | 9/16"-18 | 14.12 | 4.00 | 7.54 | 37.00 | 17.00 | 19.00 |
| -10 | DEGE-10L-05JC | M16X1.5 | 1/2"-20 | 13.97 | 5.94 | 5.94 | 36.00 | 17.00 | 19.00 |
| -10 | DEGE-10L-06JC | M16X1.5 | 9/16"-18 | 14.12 | 6.00 | 7.54 | 37.00 | 17.00 | 19.00 |
| -10 | DEGE-10L-08JC | M16X1.5 | 3/4"-16 | 16.69 | 6.00 | 9.93 | 40.50 | 19.00 | 19.00 |
| -10 | DEGE-10S-06JC | M18X1.5 | 9/16"-18 | 14.12 | 6.00 | 6.00 | 38.00 | 19.00 | 22.00 |
| -10 | DEGE-10S-08JC | M18X1.5 | 3/4"-16 | 16.69 | 6.00 | 9.93 | 40.50 | 19.00 | 22.00 |
| -12 | DEGE-12L-06JC | M18X1.5 | 9/16"-18 | 14.12 | 7.50 | 7.50 | 40.00 | 19.00 | 22.00 |
| -12 | DEGE-12L-08JC | M18X1.5 | 3/4"-16 | 16.69 | 7.50 | 9.93 | 42.50 | 19.00 | 22.00 |
| -12 | DEGE-12S-06JC | M20X1.5 | 9/16"-18 | 14.12 | 7.54 | 7.54 | 41.00 | 19.00 | 24.00 |
| -12 | DEGE-12S-08JC | M20X1.5 | 3/4"-16 | 16.69 | 8.00 | 9.93 | 43.50 | 19.00 | 24.00 |
| -14 | DEGE-14S-10JC | M22X1.5 | 7/8"-14 | 19.25 | 8.00 | 12.29 | 48.50 | 24.00 | 27.00 |
| -15 | DEGE-15L-06JC | M22X1.5 | 9/16"-18 | 14.12 | 10.00 | 7.54 | 41.00 | 22.00 | 27.00 |
| -15 | DEGE-15L-08JC | M22X1.5 | 3/4"-16 | 16.69 | 9.93 | 9.93 | 41.50 | 19.00 | 27.00 |
| -15 | DEGE-15L-10JC | M22X1.5 | 7/8"-14 | 19.25 | 10.00 | 12.29 | 47.00 | 24.00 | 27.00 |
| -16 | DEGE-16S-08JC | M24X1.5 | 3/4"-16 | 16.69 | 9.93 | 9.93 | 43.00 | 22.00 | 30.00 |
| -16 | DEGE-16S-10JC | M24X1.5 | 7/8"-14 | 19.25 | 10.00 | 12.29 | 47.50 | 24.00 | 30.00 |
| -16 | DEGE-16S-12JC | M24X1.5 | 1-1/16''-12 | 21.95 | 10.00 | 15.47 | 50.00 | 27.00 | 30.00 |
| -18 | DEGE-18L-08JC | M26X1.5 | 3/4"-16 | 16.69 | 9.93 | 9.93 | 45.00 | 27.00 | 32.00 |
| -18 | DEGE-18L-10JC | M26X1.5 | 7/8"-14 | 19.25 | 12.29 | 12.29 | 47.50 | 27.00 | 32.00 |
| -18 | DEGE-18L-12JC | M26X1.5 | 1-1/16''-12 | 21.95 | 12.50 | 15.47 | 50.00 | 30.00 | 32.00 |
| -20 | DEGE-20S-10JC | M30X2 | 7/8"-14 | 19.25 | 12.29 | 12.29 | 51.50 | 30.00 | 36.00 |
| -20 | DEGE-20S-12JC | M30X2 | 1-1/16''-12 | 21.95 | 14.00 | 14.00 | 54.50 | 30.00 | 36.00 |
| -22 | DEGE-22L-12JC | M30X2 | 1-1/16''-12 | 21.95 | 15.47 | 15.47 | 53.00 | 32.00 | 36.00 |
| -22 | DEGE-22L-16JC | M30X2 | 1-5/16''-12 | 23.14 | 17.00 | 21.44 | 55.50 | 36.00 | 36.00 |
| -25 | DEGE-25S-16J | M36X2 | 1-5/16''-12 | 23.14 | 18.00 | 21.44 | 60.50 | 36.00 | 46.00 |
| -28 | DEGE-28L-20JC | M36X2 | 1-5/8''-12 | 24.33 | 22.00 | 27.38 | 59.50 | 41.27 | 41.00 |
| -30 | DEGE-30S-12JC | M42X2 | 1-1/16''-12 | 21.95 | 22.00 | 15.47 | 58.50 | 41.00 | 50.00 |
| -30 | DEGE-30S-20JC | M42X2 | 1-5/8''-12 | 24.33 | 22.00 | 27.38 | 62.00 | 46.00 | 50.00 |
| -30 | DEGE-30S-24JC | M42X2 | 1-7/8''-12 | 27.51 | 22.00 | 33.32 | 67.00 | 50.00 | 50.00 |
| -35 | DEGE-35L-20JC | M45X2 | 1-5/8''-12 | 24.33 | 27.38 | 27.38 | 59.50 | 46.00 | 50.00 |
| -35 | DEGE-35L-24JC | M45X2 | 1-7/8''-12 | 27.51 | 28.00 | 33.32 | 65.50 | 50.00 | 50.00 |
| -38 | DEGE-38S-32JC | M52X2 | 2-1/2''-12 | 33.86 | 30.00 | 45.25 | 87.50 | 65.00 | 60.00 |
| -42 | DEGE-42L-24JC | M52X2 | 1-7/8''-12 | 27.51 | 33.32 | 33.32 | 65.50 | 55.00 | 60.00 |
| -42 | DEGE-42L-32JC | M52X2 | 2-1/2''-12 | 33.86 | 34.00 | 45.25 | 75.50 | 65.00 | 60.00 |
