Location: Home Fluid Connector Hydraulic Adaptors Hose Fitting DIN 2353DVKA

DVKA Blank Plug with O Ring Port with ED Ring

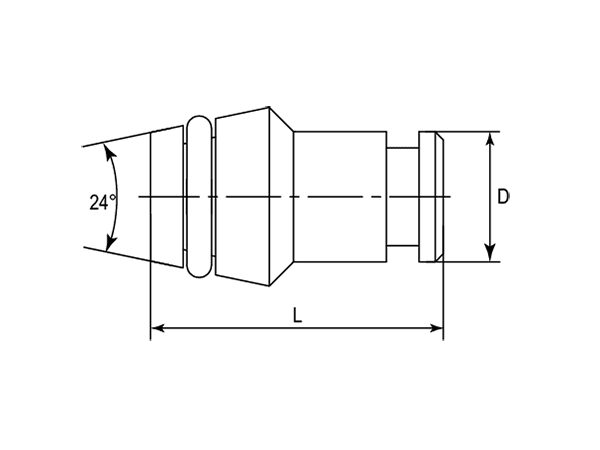

A model drawing of DVKA hydraulic adaptor.

DME&JDE Code: DVKA
Product Type: hydraulic adaptor
Standard: DIN 2353
Sealing Method: ED Rings, O Rings

Technical Data of DVKA

-06
-08
-10
-12
-14
-15
-16
-18
-20
-22
-25
-28
-30
-35
-38
-42

* Filter the F1 Thread through selecting the -XX options

-	Part Number	D	L
-	-	mm	mm
-01	DVKA-06L/S	6.00	18.50
-08	DVKA-08L/S	8.00	18.50
-10	DVKA-10L/S	10.00	20.00
-12	DVKA-12L/S	12.00	20.50
-14	DVKA-14S	14.00	20.50
-15	DVKA-15L	15.00	20.50
-16	DVKA-16S	16.00	23.50
-18	DVKA-18L	18.00	22.50
-20	DVKA-20S	20.00	28.50
-22	DVKA-22L	22.00	25.00
-25	DVKA-25S	25.00	29.00
-28	DVKA-28L	28.00	25.50
-30	DVKA-30S	30.00	30.50
-35	DVKA-35L	35.00	30.00
-38	DVKA-38S	38.00	33.00
-42	DVKA-42L	42.00	30.00
