Location: Home Fluid Connector Hydraulic Adaptors Hose Fitting DIN 2353DFC-N

DFC-N Female Connector NPTF Female

A 3D drawing of DFC-N hydraulic adaptor.

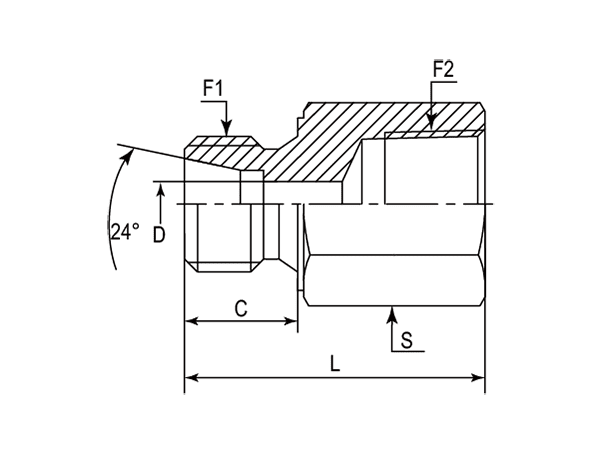

A model drawing of DFC-N hydraulic adaptor.

DME&JDE Code: DFC-N
Product Type: hydraulic adaptor
Standard: DIN 2353
Structure: Straight
Connection Type: Female × Female
Thread Types: Metric × NPTF

Technical Data of DFC-N

-06
-08
-10
-12
-15
-18

* Filter the F1 Thread through selecting the -XX options

-	Part Number	F1(Thread)	F2(Thread)	C	D	L	S
-	-	Metric	NPTF	mm	mm	mm	mm
-01	DFC-06L-01N	M12X1.5	1/8"-27	10.00	4.00	26.00	14.00
-01	DFC-06L-02N	M12X1.5	1/4"-18	10.00	4.00	30.00	19.00
-01	DFC-06L-03N	M12X1.5	3/8"-18	10.00	4.00	30.00	22.00
-08	DFC-08L-02N	M14X1.5	1/4"-18	10.00	6.00	31.00	19.00
-10	DFC-10L-02N	M16X1.5	1/4"-18	11.00	8.00	31.00	19.00
-12	DFC-12L-04N	M18X1.5	1/2"-14	11.00	10.00	38.00	27.00
-12	DFC-12S-02N	M20X1.5	1/4"-18	12.00	8.00	33.00	22.00
-15	DFC-15L-06N	M22X1.5	3/4"-14	12.00	12.00	42.00	36.00
-18	DFC-18L-06N	M26X1.5	3/4"-14	12.00	15.00	42.00	36.00
