Location: Home Fluid Connector Hydraulic Adaptors Hose Fitting DIN 2353DEGE-GQ

DEGE-GQ Swivel Female Connector BSPP Male with 24° Cone and O Ring +Retaining Ring

A 3D drawing of DEGE-GQ hydraulic adaptor.

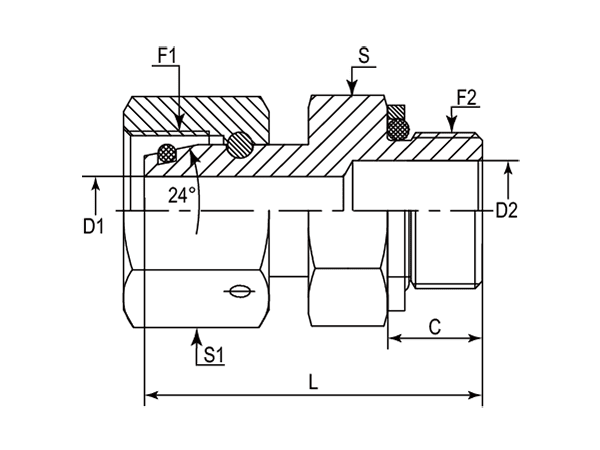

A model drawing of DEGE-GQ hydraulic adaptor.

DME&JDE Code: DEGE-GQ
Product Type: hydraulic adaptor
Standard: DIN 2353
Structure: Straight
Connection Type: Swivel Female × Male
Thread Types: Metric × BSPP 24° Cone+ O Ring + Retaining Ring
Sealing Method: O Ring + Retaining Ring

Technical Data of DEGE-GQ

-10
-12

* Filter the F1 Thread through selecting the -XX options

-	Part Number	F1 (Thread)	F2 (Thread)	C	L	D1	D2	S	S1
-	-	Metric	BSPP	mm	mm	mm	mm	mm	mm
-01	DEGE-10L-03GQ	M16X1.5	3/8"-19	11.20	6.00	9.90	33.50	22.00	19.00
-01	DEGE-10S-02GQ	M18X1.5	1/4"-19	11.20	6.00	7.50	35.00	19.00	22.00
-12	DEGE-12S-04GQ	M20X1.5	1/2"-14	14.50	8.00	12.30	40.00	30.00	24.00
