* Filter the F1 Thread through selecting the -XX options

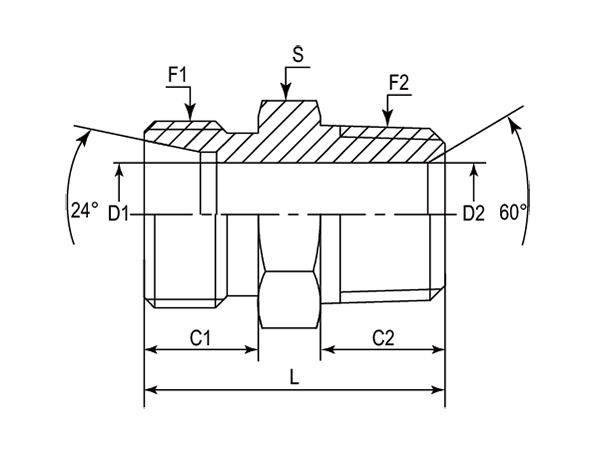

| - | Part Number | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|
| - | - | Metric | NPTF | mm | mm | mm | mm | mm | mm |
| -01 | DMC-04LL-01N | M8X1 | 1/8"-27 | 8.00 | 9.65 | 3.00 | 3.00 | 23.50 | 12.00 |
| -06 | DMC-06L-01N | M12X1.5 | 1/8"-27 | 10.00 | 9.65 | 4.00 | 4.00 | 24.00 | 12.00 |
| -06 | DMC-06L-02N | M12X1.5 | 1/4"-18 | 10.00 | 14.22 | 4.00 | 7.14 | 31.50 | 14.00 |
| -06 | DMC-06LL-01N | M10X1 | 1/8"-27 | 8.00 | 9.65 | 4.50 | 4.50 | 22.00 | 11.00 |
| -06 | DMC-06LL-02N | M10X1 | 1/4"-18 | 8.00 | 14.22 | 4.50 | 7.14 | 29.50 | 14.00 |
| -06 | DMC-06S-02N | M14X1.5 | 1/4"-18 | 12.00 | 14.22 | 4.00 | 7.14 | 34.50 | 17.00 |
| -08 | DMC-08L-01N | M14X1.5 | 1/8"-27 | 10.00 | 9.65 | 6.00 | 4.00 | 26.00 | 14.00 |
| -08 | DMC-08L-02N | M14X1.5 | 1/4"-18 | 10.00 | 14.22 | 6.00 | 7.14 | 30.00 | 17.00 |
| -08 | DMC-08L-03N | M14X1.5 | 3/8"-18 | 10.00 | 14.22 | 6.00 | 10.31 | 32.00 | 19.00 |
| -08 | DMC-08L-04N | M14X1.5 | 1/2"-14 | 10.00 | 19.05 | 6.00 | 13.49 | 36.00 | 22.00 |
| -08 | DMC-08LL-01N | M12X1 | 1/8"-27 | 9.00 | 9.65 | 4.78 | 4.78 | 25.00 | 12.00 |
| -08 | DMC-08S-02N | M16X1.5 | 1/4"-18 | 12.00 | 14.22 | 5.00 | 7.14 | 32.00 | 17.00 |
| -08 | DMC-08S-03N | M16X1.5 | 3/8"-18 | 12.00 | 14.22 | 5.00 | 10.31 | 36.00 | 19.00 |
| -08 | DMC-08S-04N | M16X1.5 | 1/2"-14 | 12.00 | 19.05 | 5.00 | 13.49 | 41.00 | 22.00 |
| -10 | DMC-10L-01N | M16X1.5 | 1/8"-27 | 11.00 | 9.65 | 8.00 | 4.00 | 26.00 | 17.00 |
| -10 | DMC-10L-02N | M16X1.5 | 1/4"-18 | 11.00 | 14.22 | 8.00 | 7.14 | 31.00 | 17.00 |
| -10 | DMC-10L-03N | M16X1.5 | 3/8"-18 | 11.00 | 14.22 | 8.00 | 10.31 | 32.00 | 19.00 |
| -10 | DMC-10L-04N | M16X1.5 | 1/2"-14 | 11.00 | 19.05 | 8.00 | 13.49 | 37.00 | 22.00 |
| -10 | DMC-10S-02N | M18X1.5 | 1/4"-18 | 12.00 | 14.22 | 7.00 | 7.00 | 34.00 | 19.00 |
| -10 | DMC-10S-03N | M18X1.5 | 3/8"-18 | 12.00 | 14.22 | 7.00 | 10.31 | 35.00 | 19.00 |
| -10 | DMC-10S-04N | M18X1.5 | 1/2"-14 | 12.00 | 19.05 | 7.00 | 13.49 | 41.00 | 22.00 |
| -12 | DMC-12L-02N | M18X1.5 | 1/4"-18 | 11.00 | 14.22 | 10.00 | 7.14 | 32.00 | 19.00 |
| -12 | DMC-12L-03N | M18X1.5 | 3/8"-18 | 11.00 | 14.22 | 10.00 | 10.00 | 32.00 | 19.00 |
| -12 | DMC-12L-04N | M18X1.5 | 1/2"-14 | 11.00 | 19.05 | 10.00 | 13.49 | 37.00 | 22.00 |
| -12 | DMC-12L-06N | M18X1.5 | 3/4"-14 | 11.00 | 19.05 | 10.00 | 18.26 | 38.00 | 27.00 |
| -12 | DMC-12S-02N | M20X1.5 | 1/4"-18 | 12.00 | 14.22 | 7.14 | 7.14 | 37.00 | 22.00 |
| -12 | DMC-12S-03N | M20X1.5 | 3/8"-18 | 12.00 | 14.22 | 8.00 | 10.31 | 37.20 | 22.00 |
| -12 | DMC-12S-04N | M20X1.5 | 1/2"-14 | 12.00 | 19.05 | 8.00 | 13.49 | 42.00 | 22.00 |
| -12 | DMC-12S-06N | M20X1.5 | 3/4"-14 | 12.00 | 19.05 | 8.00 | 18.26 | 40.00 | 27.00 |
| -14 | DMC-14S-03N | M22X1.5 | 3/8"-18 | 14.00 | 14.22 | 10.00 | 10.00 | 38.00 | 24.00 |
| -14 | DMC-14S-04N | M22X1.5 | 1/2"-14 | 14.00 | 19.05 | 10.00 | 13.49 | 44.00 | 24.00 |
| -15 | DMC-15L-03N | M22X1.5 | 3/8"-18 | 12.00 | 14.22 | 12.00 | 10.31 | 33.00 | 24.00 |
| -15 | DMC-15L-04N | M22X1.5 | 1/2"-14 | 12.00 | 19.05 | 12.00 | 12.00 | 38.00 | 24.00 |
| -15 | DMC-15L-06N | M22X1.5 | 3/4"-14 | 12.00 | 19.05 | 12.00 | 18.26 | 39.00 | 30.00 |
| -16 | DMC-16S-03N | M24X1.5 | 3/8"-18 | 14.00 | 14.22 | 12.00 | 10.31 | 39.00 | 27.00 |
| -16 | DMC-16S-04N | M24X1.5 | 1/2"-14 | 14.00 | 19.05 | 12.00 | 13.49 | 44.00 | 27.00 |
| -16 | DMC-16S-06N | M24X1.5 | 3/4"-14 | 14.00 | 19.05 | 12.00 | 18.26 | 46.00 | 32.00 |
| -16 | DMC-16S-08N | M24X1.5 | 1"-11-1/2 | 4.00 | 23.88 | 12.00 | 23.83 | 52.00 | 36.00 |
| -18 | DMC-18L-03N | M26X1.5 | 3/8"-18 | 12.00 | 14.22 | 15.00 | 10.31 | 37.00 | 27.00 |
| -18 | DMC-18L-04N | M26X1.5 | 1/2"-14 | 12.00 | 19.05 | 15.00 | 13.49 | 41.00 | 27.00 |
| -18 | DMC-18L-06N | M26X1.5 | 3/4"-14 | 12.00 | 19.05 | 15.00 | 18.26 | 38.00 | 27.00 |
| -20 | DMC-20S-04N | M30X2 | 1/2"-14 | 16.00 | 19.05 | 13.50 | 13.50 | 46.00 | 32.00 |
| -20 | DMC-20S-06N | M30X2 | 3/4"-14 | 16.00 | 19.05 | 16.00 | 18.26 | 48.00 | 32.00 |
| -20 | DMC-20S-08N | M30X2 | 1"-11-1/2 | 16.00 | 23.88 | 16.00 | 21.00 | 51.50 | 36.00 |
| -22 | DMC-22L-04N | M30X2 | 1/2"-14 | 14.00 | 19.05 | 19.00 | 13.49 | 41.00 | 32.00 |
| -22 | DMC-22L-06N | M30X2 | 3/4"-14 | 14.00 | 19.05 | 18.26 | 18.26 | 41.00 | 32.00 |
| -22 | DMC-22L-08N | M30X2 | 1"-11-1/2 | 14.00 | 23.88 | 19.00 | 19.00 | 49.50 | 36.00 |
| -25 | DMC-25S-06N | M36X2 | 3/4"-14 | 18.00 | 19.05 | 20.00 | 18.26 | 51.00 | 41.00 |
| -25 | DMC-25S-08N | M36X2 | 1"-11----1/2 | 18.00 | 23.88 | 20.00 | 23.83 | 56.00 | 41.00 |
| -25 | DMC-25S-10N | M36X2 | 1-1/4"-11-1/2 | 18.00 | 24.64 | 20.00 | 31.75 | 56.50 | 46.00 |
| -25 | DMC-25S-12N | M36X2 | 1-1/2"-11-1/2 | 18.00 | 25.40 | 20.00 | 38.10 | 60.50 | 50.00 |
| -28 | DMC-28L-06N | M36X2 | 3/4"-14 | 14.00 | 19.05 | 24.00 | 18.26 | 42.00 | 41.00 |
| -28 | DMC-28L-08N | M36X2 | 1"-11-1/2 | 14.00 | 23.88 | 23.83 | 23.83 | 48.00 | 41.00 |
| -28 | DMC-28L-10N | M36X2 | 1-1/4"-11-1/2 | 14.00 | 24.64 | 24.00 | 31.75 | 48.00 | 46.00 |
| -30 | DMC-30S-06N | M42X2 | 3/4"-14 | 20.00 | 19.05 | 25.00 | 18.26 | 53.00 | 46.00 |
| -30 | DMC-30S-08N | M42X2 | 1"-11-1/2 | 20.00 | 23.88 | 25.00 | 23.83 | 58.00 | 46.00 |
| -30 | DMC-30S-10N | M42X2 | 1-1/4"-11-1/2 | 20.00 | 25.50 | 25.00 | 25.00 | 60.00 | 46.00 |
| -30 | DMC-30S-12N | M42X2 | 1-1/2"-11-1/2 | 20.00 | 25.40 | 25.00 | 38.10 | 62.00 | 50.80 |
| -35 | DMC-35L-08N | M45X2 | 1"-11-1/2 | 16.00 | 23.88 | 30.00 | 23.83 | 49.00 | 46.00 |
| -35 | DMC-35L-10N | M45X2 | 1-1/4"-11-1/2 | 16.00 | 24.64 | 30.00 | 30.00 | 51.00 | 46.00 |
| -38 | DMC-38S-10N | M52X2 | 1-1/4"-11-1/2 | 22.00 | 24.64 | 31.75 | 31.75 | 64.00 | 55.00 |
| -38 | DMC-38S-12N | M52X2 | 1-1/2"-11-1/2 | 22.00 | 25.40 | 32.00 | 38.10 | 64.50 | 55.00 |
| -42 | DMC-42L-10N | M52X2 | 1-1/4"-11-1/2 | 16.00 | 24.64 | 36.00 | 31.75 | 55.00 | 55.00 |
| -42 | DMC-42L-12N | M52X2 | 1-1/2"-11-1/2 | 16.00 | 25.40 | 36.00 | 38.10 | 52.50 | 55.00 |
