Location: Home Fluid Connector Hydraulic Adaptors Hose Fitting DIN 2353DVSTI-GED

DVSTI-GED Blanking Plug BSPP for Port with ED Ring

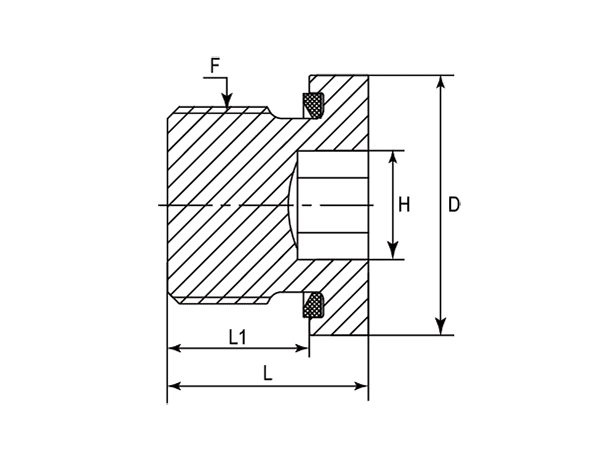

A drawing of DVSTI-GED hydraulic adaptor.

A 3D drawing of DVSTI-GED hydraulic adaptor.

A model drawing of DVSTI-GED hydraulic adaptor.

DME&JDE Code: DVSTI-GED
Product Type: hydraulic adaptor
Standard: DIN 2353
Thread Types: BSPP
Sealing Method: ED Rings
Other Features: Nut/Plug

Technical Data of DVSTI-GED

-01
-02
-03
-04
-06
-08
-10
-12
-16

* Filter the F1 Thread through selecting the -XX options

-	Part Number	F (Thread)	D	L1	L	H
-	-	BSPP	mm	mm	mm	mm
-01	DVSTI-01GED	1/8"-28	14.00	8.00	12.00	5.00
-02	DVSTI-02GED	1/4"-19	19.00	12.00	17.00	6.00
-03	DVSTI-03GED	3/8"-19	22.00	12.00	17.00	8.00
-04	DVSTI-04GED	1/2"-14	27.00	14.00	19.00	10.00
-06	DVSTI-06GED	3/4"-14	32.00	16.00	21.00	12.00
-08	DVSTI-08GED	1"-11	39.90	16.00	22.50	17.00
-10	DVSTI-10GED	1-1/4"-11	49.90	16.00	22.50	22.00
-12	DVSTI-12GED	1-1/2"-11	55.00	16.00	22.50	24.00
-16	DVSTI-16GED	2"-11	70.50	20.00	29.00	32.00
