* Filter the F1 Thread through selecting the -XX options

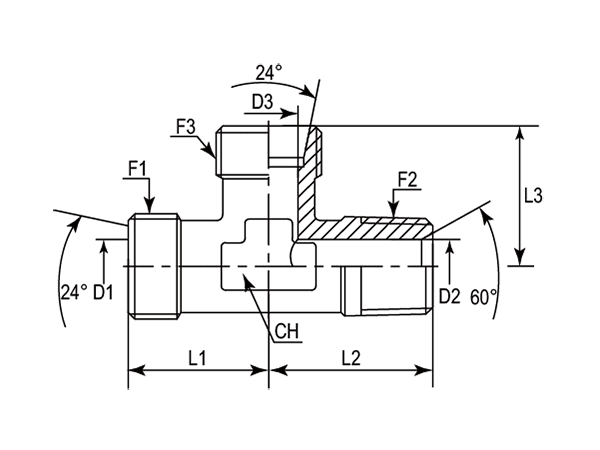

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | F3 (Thread) | D1 | D2 | D3 | L1 | L2 | L3 | CH |
|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | BSPT | METRIC | mm | mm | mm | mm | mm | mm | mm |
| -01 | DTLM-06L-01R | M12X1.5 | 1/8"-28 | M12X1.5 | 4.00 | 4.50 | 4.00 | 19.00 | 20.00 | 19.00 | 12.00 |
| -01 | DTLM-06L-02R | M12X1.5 | 1/4"-19 | M12X1.5 | 4.00 | 6.00 | 4.00 | 21.00 | 26.00 | 21.00 | 12.00 |
| -01 | DTLM-06S-02R | M14X1.5 | 1/4"-19 | M14X1.5 | 4.00 | 6.00 | 4.00 | 23.00 | 26.00 | 23.00 | 12.00 |
| -08 | DTLM-08L-02R | M14X1.5 | 1/4"-19 | M14X1.5 | 6.00 | 6.00 | 6.00 | 21.00 | 26.00 | 21.00 | 12.00 |
| -08 | DTLM-08L-03R | M14X1.5 | 3/8"-19 | M14X1.5 | 6.00 | 9.00 | 6.00 | 24.00 | 28.00 | 24.00 | 17.00 |
| -08 | DTLM-08S-02R | M16X1.5 | 1/4"-19 | M16X1.5 | 5.00 | 6.00 | 5.00 | 24.00 | 27.00 | 24.00 | 14.00 |
| -10 | DTLM-10L-02R | M16X1.5 | 1/4"-19 | M16X1.5 | 8.00 | 6.00 | 8.00 | 22.00 | 27.00 | 22.00 | 14.00 |
| -10 | DTLM-10L-03R | M16X1.5 | 3/8"-19 | M16X1.5 | 8.00 | 9.00 | 8.00 | 24.00 | 28.00 | 24.00 | 17.00 |
| -10 | DTLM-10L-04R | M16X1.5 | 1/2"-14 | M16X1.5 | 8.00 | 12.00 | 8.00 | 24.00 | 34.00 | 24.00 | 19.00 |
| -10 | DTLM-10S-03R | M18X1.5 | 3/8"-19 | M18X1.5 | 7.00 | 9.00 | 7.00 | 25.00 | 28.00 | 25.00 | 17.00 |
| -12 | DTLM-12L-03R | M18X1.5 | 3/8"-19 | M18X1.5 | 10.00 | 9.00 | 10.00 | 24.00 | 28.00 | 24.00 | 17.00 |
| -12 | DTLM-12L-04R | M18X1.5 | 1/2"-14 | M18X1.5 | 10.00 | 12.00 | 10.00 | 24.00 | 32.00 | 24.00 | 22.00 |
| -12 | DTLM-12S-03R | M20X1.5 | 3/8"-19 | M20X1.5 | 8.00 | 9.00 | 8.00 | 29.00 | 29.00 | 29.00 | 17.00 |
| -12 | DTLM-12S-04R | M20X1.5 | 1/2"-14 | M20X1.5 | 8.00 | 12.00 | 8.00 | 29.00 | 32.00 | 29.00 | 19.00 |
| -14 | DTLM-14S-03R | M22X1.5 | 3/8"-19 | M22X1.5 | 10.00 | 9.00 | 10.00 | 30.00 | 30.00 | 30.00 | 19.00 |
| -14 | DTTM-14S-04R | M22X1.5 | 1/2"-14 | M22X1.5 | 10.00 | 12.00 | 10.00 | 30.00 | 34.00 | 30.00 | 19.00 |
| -15 | DTLM-15L-03R | M22X1.5 | 3/8"-19 | M22X1.5 | 12.00 | 9.00 | 12.00 | 28.00 | 30.00 | 28.00 | 19.00 |
| -15 | DTLM-15L-04R | M22X1.5 | 1/2"-14 | M22X1.5 | 12.00 | 12.00 | 12.00 | 28.00 | 34.00 | 28.00 | 19.00 |
| -16 | DTLM-16S-03R | M24X1.5 | 3/8"-19 | M24X1.5 | 12.00 | 9.00 | 12.00 | 33.00 | 37.00 | 33.00 | 24.00 |
| -16 | DTLM-16S-04R | M24X1.5 | 1/2"-14 | M24X1.5 | 12.00 | 12.00 | 12.00 | 33.00 | 36.00 | 33.00 | 24.00 |
| -18 | DTLM-18L-04R | M26X1.5 | 1/2"-14 | M26X1.5 | 15.00 | 12.00 | 15.00 | 31.00 | 36.00 | 31.00 | 24.00 |
| -18 | DTLM-18L-06R | M26X1.5 | 3/4"-14 | M26X1.5 | 15.00 | 16.70 | 15.00 | 34.00 | 42.00 | 34.00 | 27.00 |
| -20 | DTLM-20S-04R | M30X2 | 1/2"-14 | M30X2 | 16.00 | 12.00 | 16.00 | 37.00 | 41.00 | 37.00 | 27.00 |
| -20 | DTLM-20S-06R | M30X2 | 3/4"-14 | M30X2 | 16.00 | 16.70 | 16.00 | 37.00 | 42.00 | 37.00 | 27.00 |
| -22 | DTLM-22L-06R | M30X2 | 3/4"-14 | M30X2 | 19.00 | 16.70 | 19.00 | 35.00 | 42.00 | 35.00 | 27.00 |
| -25 | DTLM-25S-06R | M36X2 | 3/4"-14 | M36X2 | 20.00 | 16.70 | 20.00 | 42.00 | 46.00 | 42.00 | 36.00 |
| -25 | DTLM-25S-08R | M36X2 | 1"-11 | M36X2 | 20.00 | 22.20 | 20.00 | 42.00 | 48.00 | 42.00 | 36.00 |
| -28 | DTLM-28L-08R | M36X2 | 1"-11 | M36X2 | 24.00 | 22.20 | 24.00 | 38.00 | 48.00 | 38.00 | 36.00 |
| -30 | DTLM-30S-08R | M42X2 | 1"-11 | M42X2 | 25.00 | 22.20 | 25.00 | 49.00 | 55.00 | 49.00 | 41.00 |
| -30 | DTLM-30S-10R | M42X2 | 1-1/4"-11 | M42X2 | 25.00 | 28.60 | 25.00 | 49.00 | 55.00 | 49.00 | 41.00 |
| -35 | DTLM-35L-10R | M45X2 | 1-1/4"-11 | M45X2 | 30.00 | 28.60 | 30.00 | 45.00 | 55.00 | 45.00 | 41.00 |
| -38 | DTLM-38S-12R | M52X2 | 1-1/2"-11 | M52X2 | 32.00 | 33.30 | 32.00 | 57.00 | 61.00 | 57.00 | 50.00 |
| -42 | DTLM-42L-12R | M52X2 | 1-1/2"-11 | M52X2 | 36.00 | 33.30 | 36.00 | 51.00 | 61.00 | 51.00 | 50.00 |
