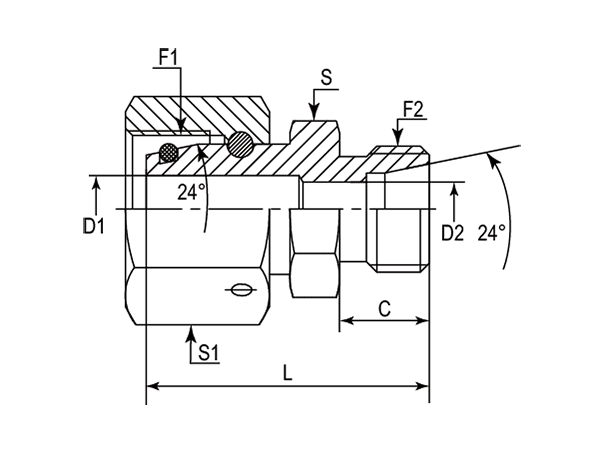

* Filter the F1 Thread through selecting the -XX options
| - | Part Number | F1 (Thread) | F2 (Thread) | C | L | D1 | D2 | S | S1 |
|---|---|---|---|---|---|---|---|---|---|
| - | - | Metric | Metric | mm | mm | mm | mm | mm | mm |
| -01 | DRED-06L-04LL | M12X1.5 | M8X1 | 8.00 | 29.00 | 3.00 | 3.00 | 14.00 | 14.00 |
| -01 | DRED-06L-06LL | M12X1.5 | M10X1 | 8.00 | 29.00 | 3.00 | 4.50 | 12.00 | 14.00 |
| -08 | DRED-08L-06L | M14X1.5 | M12X1.5 | 10.00 | 29.00 | 4.00 | 4.00 | 12.00 | 17.00 |
| -10 | DRED-10L-06L | M16X1.5 | M12X1.5 | 10.00 | 30.50 | 4.00 | 4.00 | 14.00 | 19.00 |
| -10 | DRED-10L-08L | M16X1.5 | M14X1.5 | 10.00 | 31.00 | 6.00 | 6.00 | 17.00 | 19.00 |
| -12 | DRED-12L-06L | M18X1.5 | M12X1.5 | 10.00 | 32.00 | 7.50 | 4.00 | 17.00 | 22.00 |
| -12 | DRED-12L-08L | M18X1.5 | M14X1.5 | 10.00 | 31.00 | 7.50 | 6.00 | 17.00 | 22.00 |
| -12 | DRED-12L-10L | M18X1.5 | M16X1.5 | 11.00 | 33.00 | 7.50 | 7.50 | 17.00 | 22.00 |
| -15 | DRED-15L-06L | M22X1.5 | M12X1.5 | 10.00 | 34.00 | 10.00 | 4.00 | 19.00 | 27.00 |
| -15 | DRED-15L-08L | M22X1.5 | M14X1.5 | 10.00 | 34.00 | 10.00 | 6.00 | 19.00 | 27.00 |
| -15 | DRED-15L-10L | M22X1.5 | M16X1.5 | 11.00 | 35.50 | 10.00 | 8.00 | 19.00 | 27.00 |
| -15 | DRED-15L-12L | M22X1.5 | M18X1.5 | 11.00 | 35.50 | 10.00 | 10.00 | 19.00 | 27.00 |
| -18 | DRED-18L-06L | M26X1.5 | M12X1.5 | 10.00 | 36.00 | 12.50 | 4.00 | 24.00 | 32.00 |
| -18 | DRED-18L-08L | M26X1.5 | M14X1.5 | 10.00 | 36.00 | 12.50 | 6.00 | 27.00 | 32.00 |
| -18 | DRED-18L-10L | M26X1.5 | M16X1.5 | 11.00 | 37.00 | 12.50 | 8.00 | 24.00 | 32.00 |
| -18 | DRED-18L-12L | M26X1.5 | M18X1.5 | 11.00 | 37.50 | 12.50 | 10.00 | 24.00 | 32.00 |
| -18 | DRED-18L-15L | M26X1.5 | M22X1.5 | 12.00 | 36.50 | 12.00 | 12.00 | 24.00 | 32.00 |
| -22 | DRED-22L-08L | M30X2 | M14X1.5 | 10.00 | 37.50 | 17.00 | 6.00 | 27.00 | 36.00 |
| -22 | DRED-22L-10L | M30X2 | M16X1.5 | 11.00 | 38.00 | 14.00 | 8.00 | 27.00 | 36.00 |
| -22 | DRED-22L-12L | M30X2 | M18X1.5 | 11.00 | 39.00 | 14.00 | 10.00 | 27.00 | 36.00 |
| -22 | DRED-22L-15L | M30X2 | M22X1.5 | 12.00 | 39.00 | 17.00 | 12.00 | 27.00 | 36.00 |
| -22 | DRED-22L-18L | M30X2 | M26X1.5 | 12.00 | 41.00 | 15.00 | 15.00 | 27.00 | 36.00 |
| -28 | DRED-28L-08L | M36X2 | M14X1.5 | 10.00 | 40.50 | 22.00 | 6.00 | 36.00 | 41.00 |
| -28 | DRED-28L-10L | M36X2 | M16X1.5 | 11.00 | 41.50 | 22.00 | 8.00 | 36.00 | 41.00 |
| -28 | DRED-28L-12L | M36X2 | M18X1.5 | 11.00 | 41.50 | 22.00 | 10.00 | 36.00 | 41.00 |
| -28 | DRED-28L-15L | M36X2 | M22X1.5 | 12.00 | 42.50 | 22.00 | 12.00 | 36.00 | 41.00 |
| -28 | DRED-28L-18L | M36X2 | M26X1.5 | 12.00 | 42.50 | 22.00 | 15.00 | 36.00 | 41.00 |
| -28 | DRED-28L-22L | M36X2 | M30X2 | 14.00 | 44.50 | 22.00 | 19.00 | 36.00 | 41.00 |
| -35 | DRED-35L-15L | M45X2 | M22X1.5 | 12.00 | 46.00 | 28.00 | 12.00 | 41.00 | 50.00 |
| -35 | DRED-35L-18L | M45X2 | M26X1.5 | 12.00 | 46.00 | 28.00 | 15.00 | 41.00 | 50.00 |
| -35 | DRED-35L-22L | M45X2 | M30X2 | 14.00 | 47.50 | 28.00 | 19.00 | 46.00 | 50.00 |
| -35 | DRED-35L-28L | M45X2 | M36X2 | 14.00 | 46.00 | 28.00 | 24.00 | 41.00 | 50.00 |
| -42 | DRED-42L-10L | M52X2 | M16X1.5 | 11.00 | 47.50 | 34.00 | 8.00 | 50.00 | 60.00 |
| -42 | DRED-42L-12L | M52X2 | M18X1.5 | 11.00 | 47.50 | 34.00 | 10.00 | 50.00 | 60.00 |
| -42 | DRED-42L-15L | M52X2 | M22X1.5 | 12.00 | 48.50 | 34.00 | 12.00 | 50.00 | 60.00 |
| -42 | DRED-42L-18L | M52X2 | M26X1.5 | 12.00 | 48.50 | 34.00 | 15.00 | 50.00 | 60.00 |
| -42 | DRED-42L-22L | M52X2 | M30X2 | 14.00 | 50.00 | 34.00 | 19.00 | 50.00 | 60.00 |
| -42 | DRED-42L-28L | M52X2 | M36X2 | 14.00 | 50.00 | 34.00 | 24.00 | 50.00 | 60.00 |
| -42 | DRED-42L-35L | M52X2 | M45X2 | 16.00 | 52.00 | 34.00 | 30.00 | 50.00 | 60.00 |
