DL-MQ Adjustable Elbow Metric Male ORB

  • DME&JDE Code: DL-MQ
  • Product Type: hydraulic adaptor
  • Standard: DIN 2353
  • Structure: 90° Elbow
  • Connection Type: Adjustable Male × Male
  • Thread Types: Metric × Metric + O Ring + Retaining Ring
  • Sealing Method: O Ring + Retaining Ring
Technical Data of DL-MQ
  • -06
  • -08
  • -10
  • -12
  • -14
  • -15
  • -16
  • -18
  • -20
  • -22
  • -25
  • -28
  • -30
  • -35
  • -38
  • -42

* Filter the F1 Thread through selecting the -XX options

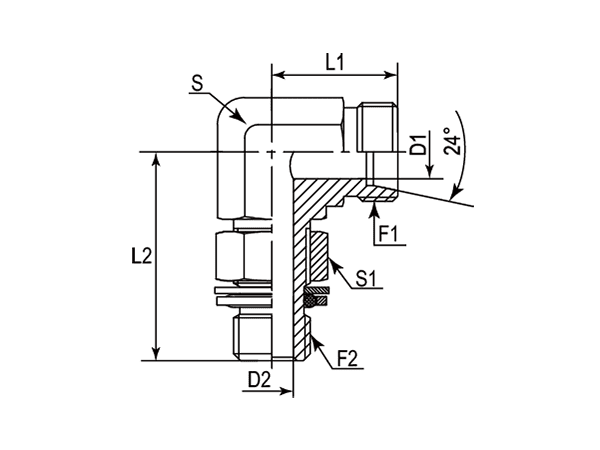

A drawing of DL-MQ hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) L1 L2 D1 D2 S S1
- - Metric Metric mm mm mm mm mm mm
-01 DL-06L-M10Q M12X1.5 M10X1 20.00 28.50 4.00 4.00 14.00 14.00
-01 DL-06S-M12Q M14X1.5 M12X1.5 23.00 32.00 4.00 4.00 14.00 17.00
-08 DL-08L-M12Q M14X1.5 M12X1.5 22.00 32.00 6.00 4.00 14.00 17.00
-08 DL-08S-M14Q M16X1.5 M14X1.5 25.00 36.00 5.00 6.00 19.00 19.00
-10 DL-10L-M14Q M16X1.5 M14X1.5 24.00 36.00 8.00 6.00 19.00 19.00
-10 DL-10S-M16Q M18X1.5 M16X1.5 25.00 38.00 7.00 7.00 19.00 22.00
-12 DL-12L-M16Q M18X1.5 M16X1.5 24.00 38.00 10.00 9.00 19.00 22.00
-12 DL-12S-M18Q M20X1.5 M18X1.5 29.00 40.00 8.00 9.00 22.00 24.00
-14 DL-14S-M20Q M22X1.5 M20X1.5 30.00 44.00 10.00 10.00 22.00 27.00
-15 DL-15L-M18Q M22X1.5 M18X1.5 28.00 40.00 12.00 11.00 22.00 24.00
-16 DL-16S-M22Q M24X1.5 M22X1.5 33.00 43.00 12.00 12.00 27.00 27.00
-18 DL-18L-M22Q M26X1.5 M22X1.5 31.00 46.00 15.00 14.00 27.00 27.00
-20 DL-20S-M27Q M30X2 M27X2 37.00 55.00 16.00 17.00 32.00 32.00
-22 DL-22L-M27Q M30X2 M27X2 35.50 50.50 19.00 15.00 30.00 32.00
-25 DL-25S-M33Q M36X2 M33X2 42.00 56.50 20.00 20.00 36.00 41.00
-28 DL-28L-M33Q M36X2 M33X2 40.00 56.50 24.00 23.00 36.00 41.00
-30 DL-30S-M42Q M42X2 M42X2 49.00 60.00 25.00 26.00 41.00 50.00
-35 DL-35L-M42Q M45X2 M42X2 49.00 62.00 30.00 30.00 48.00 50.00
-38 DL-38S-M48Q M52X2 M48X2 57.00 70.00 32.00 32.00 55.00 55.00
-42 DL-42L-M48Q M52X2 M48X2 52.00 70.00 36.00 36.00 55.00 55.00
