* Filter the F1 Thread through selecting the -XX options

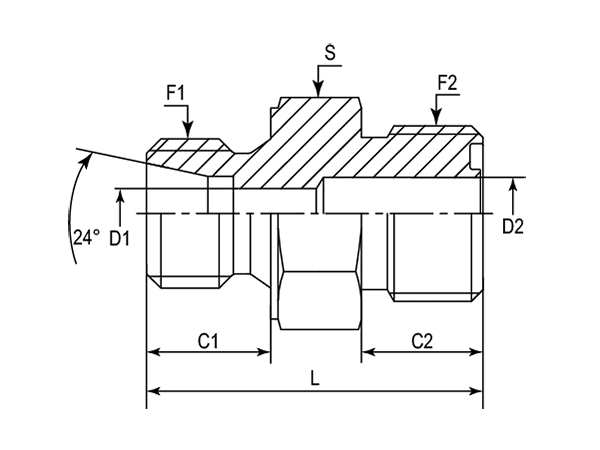

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | UNF | mm | mm | mm | mm | mm | mm |
| -01 | DMC-06L-04FS | M12 × 1.5 | 9/16"-18 | 10 | 9.8 | 4 | 4 | 30 | 17 |
| -01 | DMC-06S-04FS | M14 × 1.5 | 9/16"-18 | 12 | 9.8 | 4 | 4 | 32.5 | 19 |
| -08 | DMC-08L-04FS | M14 × 1.5 | 9/16"-18 | 10 | 9.8 | 4.37 | 4.37 | 30 | 19 |
| -08 | DMC-08L-06FS | M14 × 1.5 | 11/16"-16 | 10 | 11.2 | 6 | 6 | 31.5 | 19 |
| -08 | DMC-08S-04FS | M16 × 1.5 | 9/16"-18 | 12 | 9.8 | 4.37 | 4.37 | 32.5 | 22 |
| -08 | DMC-08S-06FS | M16 × 1.5 | 11/16"-16 | 12 | 11.2 | 5 | 5 | 34 | 22 |
| -10 | DMC-10L-06FS | M16 × 1.5 | 11/16"-16 | 11 | 11.2 | 6.71 | 6.71 | 32 | 22 |
| -10 | DMC-10L-08FS | M16 × 1.5 | 13/16"-16 | 11 | 12.8 | 8 | 8 | 34 | 22 |
| -10 | DMC-10S-06FS | M18 × 1.5 | 11/16"-16 | 12 | 11.2 | 6.71 | 6.71 | 34 | 24 |
| -12 | DMC-12L-06FS | M18 × 1.5 | 11/16"-16 | 11 | 11.2 | 10 | 6.71 | 32.5 | 24 |
| -12 | DMC-12L-08FS | M18 × 1.5 | 13/16"-16 | 11 | 12.8 | 9.6 | 9.6 | 34 | 24 |
| -12 | DMC-12L-12FS | M18 × 1.5 | 13/16"-12 | 11 | 17.02 | 10 | 15.47 | 41.5 | 32 |
| -12 | DMC-12S-08FS | M20 × 1.5 | 13/16"-16 | 12 | 12.8 | 8 | 8 | 37 | 27 |
| -12 | DMC-12S-10FS | M20 × 1.5 | 1"-14 | 12 | 15.49 | 8 | 12.29 | 39.5 | 27 |
| -14 | DMC-14S-08FS | M22 × 1.5 | 13/16"-16 | 14 | 12.8 | 9.6 | 9.6 | 39 | 27 |
| -14 | DMC-14S-10FS | M22 × 1.5 | 1"-14 | 14 | 15.5 | 10 | 12.5 | 44 | 27 |
| -15 | DMC-15L-08FS | M22 × 1.5 | 13/16"-16 | 12 | 12.8 | 12 | 9.6 | 37 | 27 |
| -15 | DMC-15L-10FS | M22 × 1.5 | 1"-14 | 12 | 15.5 | 12 | 12 | 39 | 27 |
| -16 | DMC-16S-10FS | M24 × 1.5 | 1"-14 | 14 | 15.5 | 12 | 12 | 44 | 27 |
| -18 | DMC-18L-08FS | M26 × 1.5 | 13/16"-16 | 12 | 13 | 15 | 9.5 | 42 | 32 |
| -18 | DMC-18L-12FS | M26 × 1.5 | 13/16"-12 | 12 | 17.02 | 15 | 15 | 42 | 32 |
| -20 | DMC-20S-12FS | M30 × 2 | 13/16"-12 | 16 | 17.02 | 15.47 | 15.47 | 47 | 36 |
| -22 | DMC-22L-12FS | M30 × 2 | 13/16"-12 | 14 | 17.02 | 19 | 15.47 | 45 | 36 |
| -22 | DMC-22L-16FS | M30 × 2 | 17/16"-12 | 14 | 17.5 | 19 | 19 | 46 | 38 |
| -25 | DMC-25S-12FS | M36 × 2 | 13/16"-12 | 18 | 17.02 | 20 | 15.47 | 52 | 42 |
| -25 | DMC-25S-16FS | M36 × 2 | 17/16"-12 | 18 | 17.5 | 20 | 20 | 52.5 | 42 |
| -28 | DMC-28L-12FS | M36 × 2 | 13/16"-12 | 14 | 17.02 | 24 | 15.47 | 48 | 42 |
| -28 | DMC-28L-16FS | M36 × 2 | 17/16"-12 | 14 | 17.5 | 24 | 20.6 | 48.5 | 42 |
| -28 | DMC-28L-20FS | M36 × 2 | 111/16"-12 | 14 | 17.5 | 24 | 26 | 48 | 46 |
| -30 | DMC-30S-16FS | M42 × 2 | 17/16"-12 | 20 | 17.5 | 25 | 20.6 | 54.5 | 50 |
| -30 | DMC-30S-20FS | M42 × 2 | 111/16"-12 | 20 | 17.5 | 25 | 25 | 54 | 46 |
| -35 | DMC-35L-16FS | M45 × 2 | 17/16"-12 | 16 | 17.5 | 30 | 20.6 | 53.5 | 55 |
| -35 | DMC-35L-24FS | M45 × 2 | 2"-12 | 16 | 17.5 | 30 | 32 | 51.5 | 55 |
| -38 | DMC-38S-24FS | M52 × 2 | 2"-12 | 22 | 17.5 | 32 | 32 | 57.5 | 55 |
| -42 | DMC-42L-24FS | M52 × 2 | 2"-12 | 16 | 17.5 | 36 | 32 | 51.5 | 55 |
