* Filter the F1 Thread through selecting the -XX options

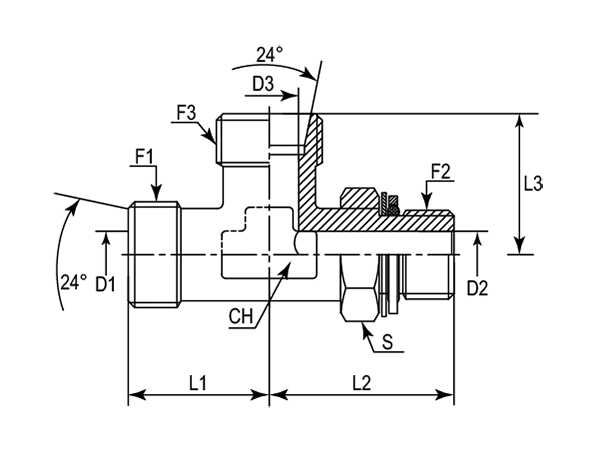

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | F3 (Thread) | D1 | D2 | D3 | L1 | L2 | L3 | CH | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | METRIC | METRIC | mm | mm | mm | mm | mm | mm | mm | mm |
| -01 | DTL-06L-M10Q | M12X1.5 | M10X1 | M12X1.5 | 4.00 | 4.40 | 4.00 | 19.00 | 26.00 | 19.00 | 12.00 | 14 |
| -01 | DTL-06S-M12Q | M14X1.5 | M12X1.5 | M14X1.5 | 4.00 | 6.00 | 4.00 | 23.00 | 31.00 | 23.00 | 14.00 | 17 |
| -01 | DTL-06S-M14Q | M14X1.5 | M14X1.5 | M14X1.5 | 4.00 | 7.50 | 4.00 | 23.00 | 32.00 | 23.00 | 14.00 | 19 |
| -08 | DTL-08L-M12Q | M14X1.5 | M12X1.5 | M14X1.5 | 6.00 | 6.00 | 6.00 | 21.00 | 31.00 | 21.00 | 14.00 | 17 |
| -08 | DTL-08L-M14Q | M14X1.5 | M14X1.5 | M14X1.5 | 6.00 | 7.50 | 6.00 | 21.00 | 32.00 | 21.00 | 14.00 | 19 |
| -08 | DTL-08L-M16Q | M14X1.5 | M16X1.5 | M14X1.5 | 6.00 | 9.90 | 6.00 | 24.00 | 37.00 | 24.00 | 19.00 | 22 |
| -08 | DTL-08S-M14Q | M16X1.5 | M14X1.5 | M16X1.5 | 5.00 | 7.50 | 5.00 | 24.00 | 32.00 | 24.00 | 19.00 | 19 |
| -08 | DTL-08S-M16Q | M16X1.5 | M16X1.5 | M16X1.5 | 5.00 | 9.90 | 5.00 | 24.00 | 37.00 | 24.00 | 19.00 | 22 |
| -10 | DTL-10L-M14Q | M16X1.5 | M14X1.5 | M16X1.5 | 8.00 | 7.50 | 8.00 | 22.00 | 32.00 | 22.00 | 14.00 | 19 |
| -10 | DTL-10L-M16Q | M16X1.5 | M16X1.5 | M16X1.5 | 8.00 | 9.90 | 8.00 | 26.00 | 37.00 | 26.00 | 19.00 | 22 |
| -10 | DTL-10L-M20Q | M16X1.5 | M20X1.5 | M16X1.5 | 8.00 | 12.30 | 8.00 | 27.00 | 44.00 | 27.00 | 22.00 | 27 |
| -10 | DTL-10S-M16Q | M18X1.5 | M16X1.5 | M18X1.5 | 7.00 | 9.90 | 7.00 | 25.00 | 37.00 | 25.00 | 19.00 | 22 |
| -12 | DTL-12L-M14Q | M18X1.5 | M14X1.5 | M18X1.5 | 10.00 | 7.50 | 10.00 | 24.00 | 37.00 | 24.00 | 19.00 | 19 |
| -12 | DTL-12L-M16Q | M18X1.5 | M16X1.5 | M18X1.5 | 10.00 | 9.90 | 10.00 | 24.00 | 37.00 | 24.00 | 19.00 | 22 |
| -12 | DTL-12L-M20Q | M18X1.5 | M20X1.5 | M18X1.5 | 10.00 | 12.30 | 10.00 | 27.00 | 44.00 | 27.00 | 22.00 | 27 |
| -12 | DTL-12S-M16Q | M20X1.5 | M16X1.5 | M20X1.5 | 8.00 | 9.90 | 8.00 | 29.00 | 37.00 | 29.00 | 22.00 | 22 |
| -12 | DTL-12S-M18Q | M20X1.5 | M18X1.5 | M20X1.5 | 8.00 | 9.00 | 8.00 | 29.00 | 38.00 | 29.00 | 19.00 | 24 |
| -12 | DTL-12S-M20Q | M20X1.5 | M20X1.5 | M20X1.5 | 8.00 | 12.30 | 8.00 | 29.00 | 43.00 | 29.00 | 22.00 | 27 |
| -14 | DTL-14S-M20Q | M22X1.5 | M20X1.5 | M22X1.5 | 10.00 | 12.30 | 10.00 | 30.00 | 44.00 | 30.00 | 22.00 | 27 |
| -15 | DTL-15L-M16Q | M22X1.5 | M16X1.5 | M22X1.5 | 12.00 | 9.90 | 12.00 | 28.00 | 39.00 | 28.00 | 22.00 | 22 |
| -15 | DTL-15L-M18Q | M22X1.5 | M18X1.5 | M22X1.5 | 12.00 | 9.00 | 12.00 | 28.00 | 40.00 | 28.00 | 24.00 | 27 |
| -15 | DTL-15L-M20Q | M22X1.5 | M20X1.5 | M22X1.5 | 12.00 | 12.30 | 12.00 | 28.00 | 44.00 | 28.00 | 22.00 | 27 |
| -16 | DTL-16S-M16Q | M24X1.5 | M16X1.5 | M24X1.5 | 12.00 | 9.90 | 12.00 | 33.00 | 41.50 | 33.00 | 27.00 | 22 |
| -16 | DTL-16S-M20Q | M24X1.5 | M20X1.5 | M24X1.5 | 12.00 | 12.30 | 12.00 | 33.00 | 47.00 | 33.00 | 27.00 | 27 |
| -16 | DTL-16S-M22Q | M24X1.5 | M22X1.5 | M24X1.5 | 12.00 | 12.00 | 12.00 | 33.00 | 48.00 | 33.00 | 27.00 | 27 |
| -18 | DTL-18L-M20Q | M26X1.5 | M20X1.5 | M26X1.5 | 15.00 | 12.30 | 15.00 | 31.00 | 47.00 | 31.00 | 27.00 | 27 |
| -18 | DTL-18L-M22Q | M26X1.5 | M22X1.5 | M26X1.5 | 15.00 | 12.00 | 15.00 | 31.00 | 46.00 | 31.00 | 27.00 | 27 |
| -18 | DTL-18L-M26Q | M26X1.5 | M26X1.5 | M26X1.5 | 15.00 | 15.00 | 15.00 | 33.00 | 47.00 | 33.00 | 27.00 | 36 |
| -20 | DTL-20S-M26Q | M30X2 | M26X1.5 | M30X2 | 16.00 | 15.50 | 16.00 | 37.00 | 51.00 | 37.00 | 30.00 | 36 |
| -20 | DTL-20S-M27Q | M30X2 | M27X2 | M30X2 | 16.00 | 15.00 | 16.00 | 37.00 | 50.50 | 37.00 | 27.00 | 32 |
| -22 | DTL-22L-M26Q | M30X2 | M26X1.5 | M30X2 | 19.00 | 15.50 | 19.00 | 35.50 | 49.00 | 35.50 | 30.00 | 36 |
| -22 | DTL-22L-M27Q | M30X2 | M27X2 | M30X2 | 19.00 | 15.00 | 19.00 | 35.00 | 50.50 | 35.00 | 27.00 | 32 |
| -22 | DTL-22L-M33Q | M30X2 | M33X2 | M30X2 | 19.00 | 21.50 | 19.00 | 40.00 | 59.00 | 40.00 | 36.00 | 41 |
| -25 | DTL-25S-M26Q | M36X2 | M26X1.5 | M36X2 | 20.00 | 15.50 | 20.00 | 42.00 | 57.50 | 42.00 | 36.00 | 36 |
| -25 | DTL-25S-M33Q | M36X2 | M33X2 | M36X2 | 20.00 | 21.50 | 20.00 | 42.00 | 56.00 | 42.00 | 36.00 | 41 |
| -28 | DTL-28L-M33Q | M36X2 | M33X2 | M36X2 | 24.00 | 21.50 | 24.00 | 40.00 | 59.00 | 40.00 | 36.00 | 41 |
| -28 | DTL-28L-M42Q | M36X2 | M42X2 | M36X2 | 24.00 | 27.50 | 24.00 | 44.50 | 60.50 | 44.50 | 41.00 | 50 |
| -30 | DTL-30S-M33Q | M42X2 | M33X2 | M42X2 | 25.00 | 21.50 | 25.00 | 49.00 | 57.00 | 49.00 | 41.00 | 41 |
| -30 | DTL-30S-M42Q | M42X2 | M42X2 | M42X2 | 25.00 | 27.50 | 25.00 | 49.00 | 65.00 | 49.00 | 48.00 | 50 |
| -35 | DTL-35L-M42Q | M45X2 | M42X2 | M45X2 | 30.00 | 27.50 | 30.00 | 45.00 | 65.00 | 45.00 | 48.00 | 50 |
| -38 | DTL-38S-M48Q | M52X2 | M48X2 | M52X2 | 32.00 | 33.00 | 32.00 | 57.00 | 66.00 | 57.00 | 55.00 | 55 |
| -42 | DTL-42L-M48Q | M52X2 | M48X2 | M52X2 | 36.00 | 33.00 | 36.00 | 51.00 | 66.00 | 51.00 | 55.00 | 55 |
