DAMMT52M Branch Tee Connector Metric 60° Male - Metric 60° Male

  • DCompanyDME
  • AProduct RangeAdaptor
  • MThread TypesMetric
  • MConnection TypeMale
  • TAdaptor StructureBranch Tee
  • 52Thread TypesMetric
  • MConnection TypeMale
  • DME&JDE Code: DAMMT52M
  • Product Type: hydraulic adaptor
  • Standard: Metric
  • Structure: Branch Tee
  • Connection Type: Male × Male × Male
  • Thread Types: Metric 60° × Metric 60° × Metric 60°
Technical Data of DAMMT52M
  • -16
  • -18
  • -20
  • -22
  • -26
  • -30

* Filter the F1 Thread through selecting the -XX options

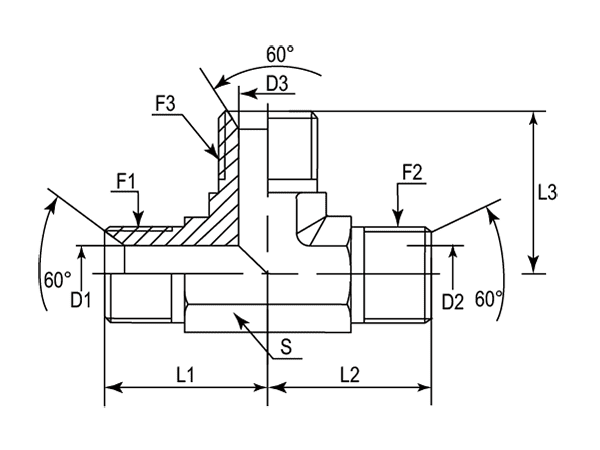

A drawing of DAMMT52M hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) F3 (Thread) D1 D2 D3 L1 L2 L3 S
- - METRIC METRIC METRIC mm mm mm mm mm mm mm
-01 DAMMT52M-161616 M16X1.5 M16X1.5 M16X1.5 8.00 8.00 8.00 29.00 29.00 29.00 19
-18 DAMMT52M-181818 M18X1.5 M18X1.5 M18X1.5 10.00 10.00 10.00 29.00 29.00 29.00 19
-20 DAMMT52M-202020 M20X1.5 M20X1.5 M20X1.5 12.00 12.00 12.00 34.00 34.00 34.00 22
-22 DAMMT52M-222222 M22X1.5 M22X1.5 M22X1.5 14.10 14.10 14.10 35.00 35.00 35.00 22
-26 DAMMT52M-262626 M26X1.5 M26X1.5 M26X1.5 15.00 15.00 15.00 42.00 42.00 42.00 27
-30 DAMMT52M-303030 M30X1.5 M30X1.5 M30X1.5 21.50 21.50 21.50 46.50 46.50 46.50 33
