DAJCMM1305 Straight Connector Metric Male 74° Cone – SAE Male O Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • JCMThread TypesMetric 74°Cone
  • MConnection TypeMale
  • 1Adaptor StructureStraight
  • 30Thread TypesSAE
  • 5Connection & Sealing MethodMale + O Ring
  • DME&JDE Code: DAJCMM1305
  • Product Type: Hydraulic Adaptors
  • Standard: Metric
  • Structure: Straight
  • Connection Type: Male × Male
  • Thread Types: Metric 74° Cone × SAE UNF
  • Sealing Method: O Rings
Technical Data of DAJCMM1305
  • -16
  • -18
  • -22
  • -27
  • -30
  • -33
  • -39
  • -42

* Filter the F1 Thread through selecting the -XX options

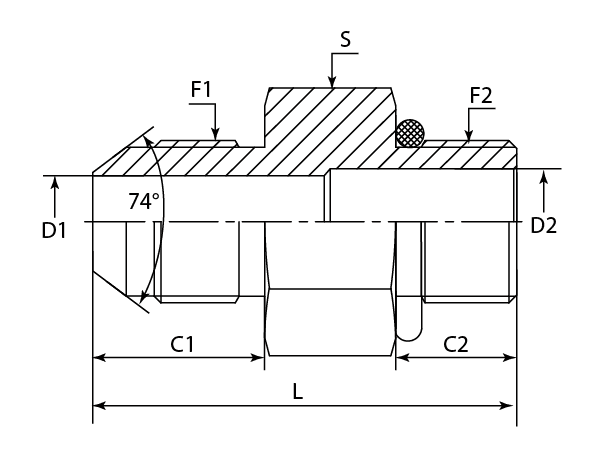

A drawing of DAJCMM1305 hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) C1 C2 D1 D2 L S
- - METRIC UNF mm mm mm mm mm mm
-01 DAJCMM1305-1606 M16X1.5 9/16"-18 18.00 9.90 7.00 7.54 35.00 17
-18 DAJCMM1305-1808 M18X1.5 3/4"-18 18.00 11.10 8.50 9.93 37.00 22
-22 DAJCMM1305-2210 M22X1.5 7/8"-14 19.50 12.70 16.70 12.29 42.00 27
-27 DAJCMM1305-2712 M27X1.5 1-1/16"-12 20.00 15.10 18.50 15.47 46.00 32
-30 DAJCMM1305-3012 M30X1.5 1-1/16"-12 23.00 15.10 18.50 15.47 49.00 32
-33 DAJCMM1305-3316 M33X2 1-5/16"-12 26.00 15.10 20.00 21.44 54.00 38
-39 DAJCMM1305-3916 M39X2 1-5/16"-12 26.00 15.10 27.00 21.44 58.00 41
-42 DAJCMM1305-4220 M42X2 1- 5/8"-12 28.50 15.10 28.00 27.38 58.00 50
