* Filter the F1 Thread through selecting the -XX options

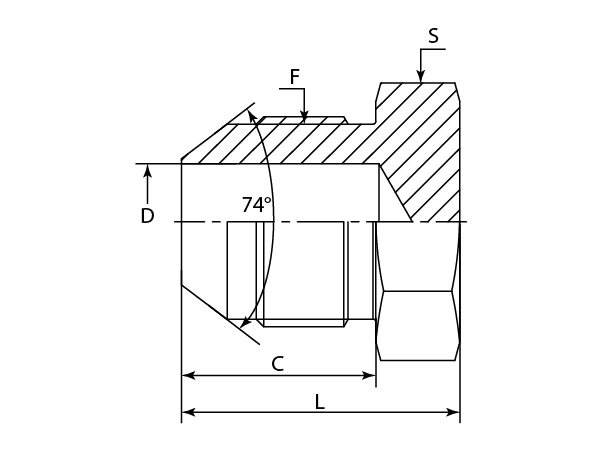

| - | PART NUMBER | F1 (Thread) | C | D | L | S |
|---|---|---|---|---|---|---|
| - | - | METRIC | mm | mm | mm | mm |
| -01 | DAJCMM1000-1000 | M10X1 | 12.00 | 3.20 | 18.00 | 12 |
| -12 | DAJCMM1000-1200 | M12X1.5 | 15.70 | 5.00 | 21.50 | 14 |
| -14 | DAJCMM1000-1400 | M14X1.5 | 17.00 | 5.00 | 23.00 | 17 |
| -16 | DAJCMM1000-1600 | M16X1.5 | 18.00 | 7.00 | 24.00 | 17 |
| -18 | DAJCMM1000-1800 | M18X1.5 | 18.00 | 8.50 | 24.00 | 19 |
| -22 | DAJCMM1000-2200 | M22X1.5 | 19.50 | 12.00 | 27.50 | 24 |
| -24 | DAJCMM1000-2400 | M24X1.5 | 20.00 | 15.00 | 30.00 | 27 |
| -27 | DAJCMM1000-2700 | M27X1.5 | 20.00 | 16.70 | 30.00 | 30 |
| -30 | DAJCMM1000-3000 | M30X1.5 | 23.00 | 18.50 | 34.00 | 32 |
| -33 | DAJCMM1000-3300 | M33X2 | 26.00 | 20.00 | 37.00 | 36 |
| -36 | DAJCMM1000-3600 | M36X2 | 26.00 | 26.00 | 38.00 | 38 |
| -39 | DAJCMM1000-3900 | M39X2 | 26.00 | 27.00 | 39.00 | 41 |
| -42 | DAJCMM1000-4200 | M42X2 | 28.50 | 28.00 | 41.50 | 46 |
| -45 | DAJCMM1000-4500 | M45X2 | 28.50 | 33.00 | 41.50 | 46 |
