* Filter the F1 Thread through selecting the -XX options

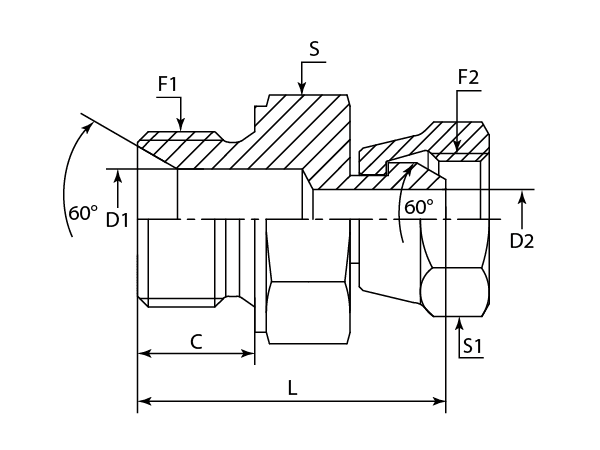

| - | PART NUMBER | F1 (Thread) | F2 (Thread) | C | D1 | D2 | L | S | S1 |
|---|---|---|---|---|---|---|---|---|---|
| - | - | METRIC | METRIC | mm | mm | mm | mm | mm | mm |
| -01 | DAMM1021-1212 | M12X1.5 | M12X1.5 | 10.00 | 4.00 | 4.00 | 28.00 | 17 | 17 |
| -14 | DAMM1021-1414 | M14X1.5 | M14X1.5 | 11.00 | 6.00 | 4.70 | 29.50 | 19 | 19 |
| -16 | DAMM1021-1616 | M16X1.5 | M16X1.5 | 12.00 | 8.00 | 6.00 | 32.00 | 22 | 22 |
| -16 | DAMM1021-1618 | M16X1.5 | M18X1.5 | 12.00 | 8.00 | 8.00 | 33.00 | 22 | 24 |
| -18 | DAMM1021-1816 | M18X1.5 | M16X1.5 | 12.00 | 10.00 | 6.00 | 33.00 | 24 | 24 |
| -18 | DAMM1021-1818 | M18X1.5 | M18X1.5 | 12.00 | 10.00 | 8.00 | 32.00 | 24 | 22 |
| -18 | DAMM1021-1820 | M18X1.5 | M20X1.5 | 12.00 | 10.00 | 10.00 | 34.50 | 24 | 27 |
| -18 | DAMM1021-1822 | M18X1.5 | M22X1.5 | 12.00 | 10.00 | 11.00 | 35.00 | 24 | 27 |
| -20 | DAMM1021-2018 | M20X1.5 | M18X1.5 | 14.00 | 12.00 | 8.00 | 38.50 | 27 | 27 |
| -20 | DAMM1021-2020 | M20X1.5 | M20X1.5 | 14.00 | 12.00 | 10.00 | 37.00 | 27 | 24 |
| -20 | DAMM1021-2022 | M20X1.5 | M22X1.5 | 14.00 | 12.00 | 11.00 | 39.00 | 27 | 27 |
| -22 | DAMM1021-2218 | M22X1.5 | M18X1.5 | 14.00 | 14.10 | 8.00 | 39.00 | 27 | 27 |
| -22 | DAMM1021-2220 | M22X1.5 | M20X1.5 | 14.00 | 14.10 | 10.00 | 37.00 | 27 | 24 |
| -22 | DAMM1021-2222 | M22X1.5 | M22X1.5 | 14.00 | 14.10 | 11.00 | 38.50 | 27 | 27 |
| -27 | DAMM1021-2727 | M27X2 | M27X2 | 16.00 | 15.00 | 15.00 | 42.50 | 32 | 32 |
| -30 | DAMM1021-3030 | M30X2 | M30X2 | 18.00 | 19.00 | 19.00 | 46.50 | 36 | 36 |
