Location: Home Fluid Connector Hydraulic Adaptors MetricDAMM128M

DAMM128M Straight Connector Metric Male 60° Cone - NPTF Male 60°

DCompanyDME
AProduct RangeAdaptor
MThread TypesMetric
MConnection TypeMale
1Adaptor StructureStraight
28Thread TypesNPTF
MConnection TypeMale

A drawing of DAMM128M hydraulic adaptor.

A 3D drawing of DAMM128M hydraulic adaptor.

A model drawing of DAMM128M hydraulic adaptor.

DME&JDE Code: DAMM128M
Product Type: hydraulic adaptor
Standard: Metric
Structure: Straight
Connection Type: Male × Male
Thread Types: Metric 60° Cone × NPTF 60°

Technical Data of DAMM128M

-08
-12
-18

* Filter the F1 Thread through selecting the -XX options

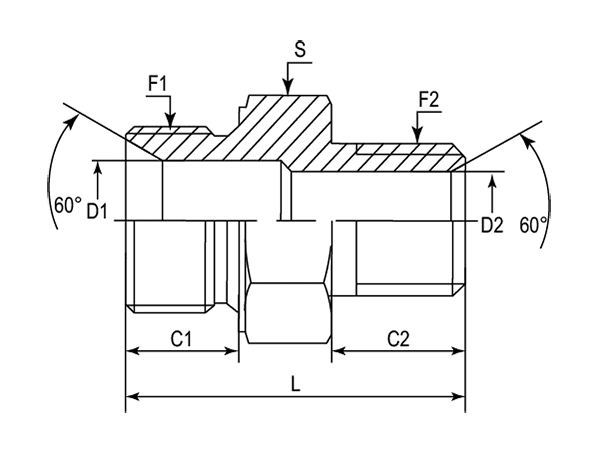

A drawing of DAMM128M hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	C	L	D1	D2	S	S1
-	-	Metric	NPTF	mm	mm	mm	mm	mm	mm
-01	DAMM128M-0804	M8X1	1/4"-18	8.00	14.22	3.00	7.14	30.00	15.88
-12	DAMM128M-1204	M12X1.5	1/4"-18	10.00	14.22	6.00	7.14	32.00	17.00
-12	DAMM128M-1206	M12X1.5	3/8"-18	10.00	14.22	6.00	10.31	33.00	19.00
-12	DAMM128M-1208	M12X1.5	1/2"-14	10.00	19.05	6.00	13.49	39.00	22.00
-18	DAMM128M-1808	M18X1.5	1/2"-14	12.00	19.05	10.00	13.49	41.00	24.00
