DAJMML065 Run Tee Connector Metric Male 84° Cone - Adjustable BSPP Male O Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • JMThread TypesMetric 84°
  • MConnection TypeMale
  • LAdaptor StructureRun Tee
  • 06Thread TypesBSPP
  • 5Connection TypeMale O Ring
  • DME&JDE Code: DAJMML065
  • Product Type: hydraulic adaptor
  • Standard: Metric
  • Structure: Run Tee
  • Connection Type: Male × Adjustable Male
  • Thread Types: UNF 74° Cone × BSPP + O Ring × Metric 84° Cone
  • Sealing Method: O Rings
Technical Data of DAJMML065
  • -06

* Filter the F1 Thread through selecting the -XX options

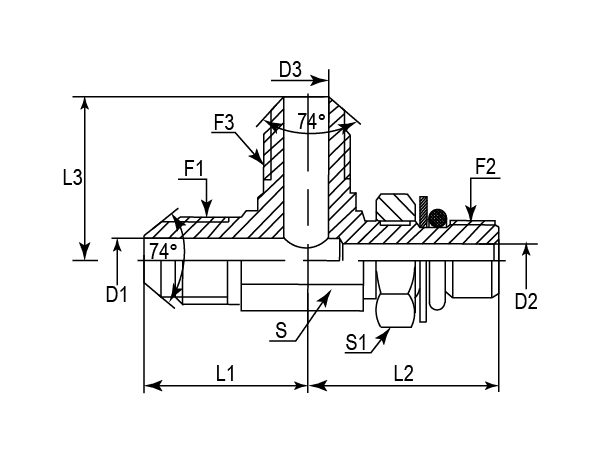

A drawing of DAJMML065 hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) F3 (Thread) D1 D2 D3 L1 L2 L3 S S1
- - UNF BSPP METRIC mm mm mm mm mm mm mm mm
-01 DAJMML065-0604 7/16"-20 1/4"-19 M14X1.5 4.37 7.50 7.54 28.50 31.50 28.50 14.00 19.00
