DAJCMM31000 Metric Female 74° Cone Plug

  • DCompanyDME
  • AProduct RangeAdaptor
  • JCMThread TypesMetric 74°Cone
  • MConnection TypeMale
  • 3Connection TypeSlip-on Female
  • 1Adaptor StructureStraight
  • 000Other FeaturesNut/Plug
  • DME&JDE Code: DAJCMM31000
  • Product Type: Hydraulic Adaptors
  • Standard: Metric
  • Structure: Straight
  • Connection Type: Female
  • Thread Types: Metric
  • Other Features: Nut/Plug
Technical Data of DAJCMM31000
  • -14
  • -16
  • -18
  • -22
  • -27
  • -30
  • -36
  • -39
  • -45
  • -52
  • -60

* Filter the F1 Thread through selecting the -XX options

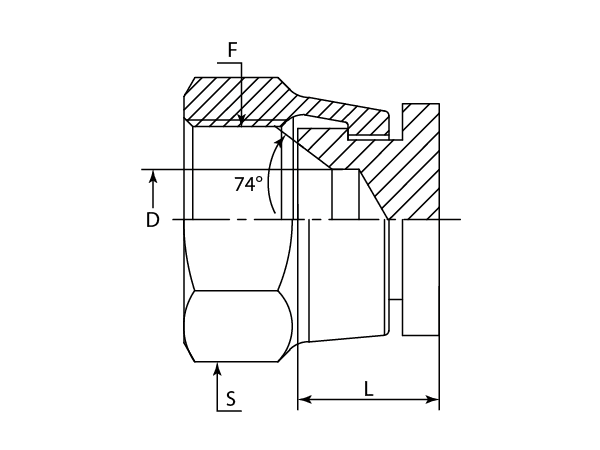

A drawing of DAJCMM31000 hydraulic adaptor.
- PART NUMBER F1 (Thread) D L S
- - METRIC mm mm mm
-01 DAJCMM31000-1400 M14X1.5 4.00 11.00 19
-16 DAJCMM31000-1600 M16X1.5 5.50 12.00 22
-18 DAJCMM31000-1800 M18X1.5 7.00 13.00 24
-22 DAJCMM31000-2200 M22X1.5 9.50 14.00 27
-27 DAJCMM31000-2700 M27X1.5 15.00 17.00 32
-30 DAJCMM31000-3000 M30X1.5 14.00 17.00 36
-36 DAJCMM31000-3600 M36X2 25.00 20.00 41
-39 DAJCMM31000-3900 M39X2 27.00 21.00 46
-45 DAJCMM31000-4500 M45X2 33.00 23.00 50
-52 DAJCMM31000-5200 M52X2 38.00 27.00 60
-60 DAJCMM31000-6000 M60X2 54.60 30.00 70
