* Filter the F1 Thread through selecting the -XX options

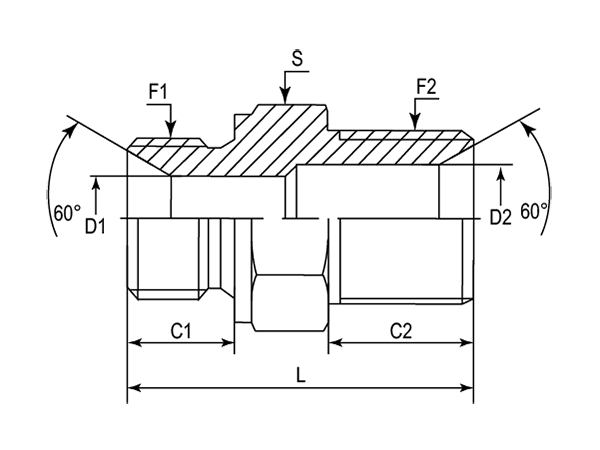

| - | Part Number | F1 (Thread) | F2 (Thread) | C1 | C2 | D1 | D2 | L | S |
|---|---|---|---|---|---|---|---|---|---|
| - | - | Metric | BSPT | mm | mm | mm | mm | mm | mm |
| -01 | DAMM107M-1002 | M10X1 | 1/8"-28 | 8.00 | 10.00 | 4.00 | 4.00 | 26.00 | 14.00 |
| -14 | DAMM107M-1404 | M14X1.5 | 1/4"-19 | 10.00 | 14.00 | 6.00 | 6.00 | 31.00 | 14.00 |
| -16 | DAMM107M-1604 | M16X1.5 | 1/4"-19 | 11.00 | 14.00 | 7.00 | 7.00 | 32.00 | 17.00 |
| -18 | DAMM107M-1804 | M18X1.5 | 1/4"-19 | 11.00 | 14.00 | 10.00 | 7.00 | 33.00 | 19.00 |
| -18 | DAMM107M-1806 | M18X1.5 | 3/8"-19 | 11.00 | 15.00 | 10.00 | 10.00 | 34.00 | 19.00 |
| -18 | DAMM107M-1808 | M18X1.5 | 1/2"-14 | 12.00 | 19.00 | 10.00 | 13.00 | 41.50 | 24.00 |
| -22 | DAMM107M-2204 | M22X1.5 | 1/4"-19 | 14.00 | 14.00 | 14.10 | 7.00 | 36.00 | 24.00 |
| -22 | DAMM107M-2206 | M22X1.5 | 3/8"-19 | 14.00 | 15.00 | 14.10 | 10.00 | 41.00 | 27.00 |
| -22 | DAMM107M-2208 | M22X1.5 | 1/2"-14 | 18.00 | 19.00 | 14.10 | 13.00 | 41.00 | 24.00 |
| -26 | DAMM107M-2608 | M26X1.5 | 1/2"-14 | 16.00 | 19.00 | 15.00 | 13.00 | 40.00 | 27.00 |
| -26 | DAMM107M-2612 | M26X1.5 | 3/4"-14 | 12.00 | 20.00 | 15.00 | 15.00 | 41.00 | 27.00 |
| -30 | DAMM107M-3012 | M30X1.5 | 3/4"-14 | 14.00 | 20.00 | 18.00 | 18.00 | 43.00 | 32.00 |
