DAJSO1000 Plug JIS Male O Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • JSThread TypesJIS Metric
  • OSealing MethodO rings
  • 1Adaptor StructureStraight
  • 000Other FeaturesNut/Plug
  • DME&JDE Code: DAJSO1000
  • Product Type: hydraulic adaptor
  • Standard: JIS
  • Connection Type: Male
  • Thread Types: BSPP
  • Sealing Method: O Rings
  • Other Features: Nut/Plug
Technical Data of DAJSO1000
  • -02
  • -04
  • -06
  • -10
  • -12
  • -16
  • -20

* Filter the F1 Thread through selecting the -XX options

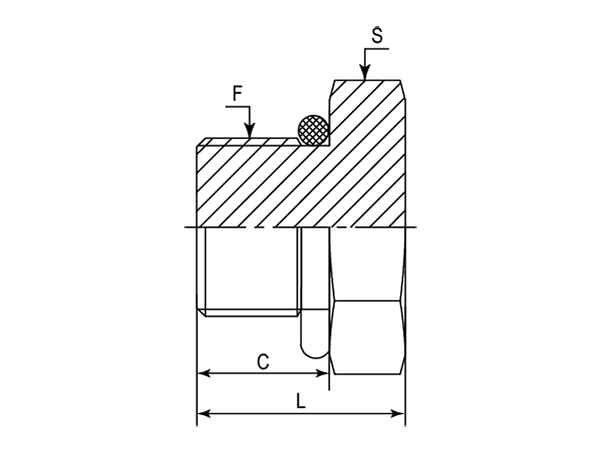

A drawing of DAJSO1000 hydraulic adaptor.
- Part Number F (Thread) C L S
- - BSPP mm mm mm
-01 DAJSO1000-0200 1/8"-28 7.60 13.50 14.00
-04 DAJSO1000-0400 1/4"-19 11.20 15.00 17.00
-06 DAJSO1000-0600 3/8"-19 12.00 22.00 24.00
-10 DAJSO1000-1000 5/8"-14 14.50 23.00 32.00
-12 DAJSO1000-1200 3/4"-14 14.50 27.00 36.00
-16 DAJSO1000-1600 1"-11 18.60 30.00 46.00
-20 DAJSO1000-2000 1-1/4''-11 18.60 32.00 50.00
