Location: Home Fluid Connector Hydraulic Adaptors JISDAJSM152JM

DAJSM152JM Straight Connector JIS Metric Male 60° Cone

DCompanyDME
AProduct RangeAdaptor
JSThread TypesJIS Metric
MConnection TypeMale
1Adaptor StructureStraight
05JThread TypesJIS Metric
MConnection TypeMale

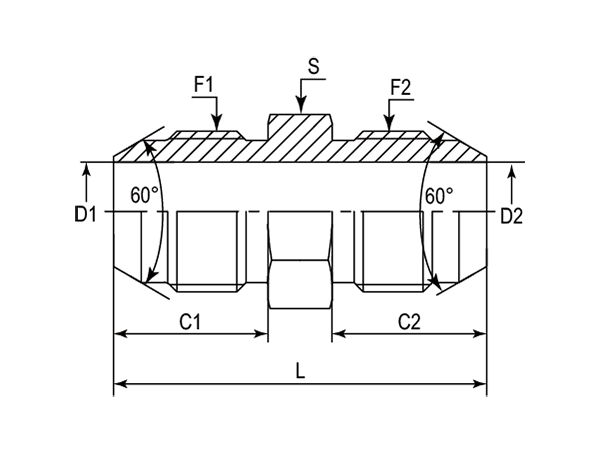

A drawing of DAJSM152JM hydraulic adaptor.

A 3D drawing of DAJSM152JM hydraulic adaptor.

A model drawing of DAJSM152JM hydraulic adaptor.

DME&JDE Code: DAJSM152JM
Product Type: hydraulic adaptor
Standard: JIS
Structure: Straight
Connection Type: Male × Male
Thread Types: JIS Metric 60° Cone × JIS Metric 60° Cone

Technical Data of DAJSM152JM

-14
-16
-18
-20
-22
-24
-32
-33

* Filter the F1 Thread through selecting the -XX options

A drawing of DAJSM152JM hydraulic adaptor.

-	Part Number	F1/F2 (Thread)	C1/C2	D1/D2	L	S	Cross Number
-	-	Metric	mm	mm	mm	mm	-
-01	DAJSM152JM-1414	M14X1.5	17.00	5.00	40.00	17.00	1K-14
-16	DAJSM152JM-1616	M16X1.5	18.00	7.00	42.00	17.00	1K-16
-18	DAJSM152JM-1818	M18X1.5	18.00	8.50	42.00	19.00	1K-18
-20	DAJSM152JM-2020	M20X1.5	20.00	10.00	48.00	22.00	1K-20
-22	DAJSM152JM-2222	M22X1.5	20.00	12.00	48.00	24.00	1K-22
-24	DAJSM152JM-2424	M24X1.5	21.50	15.00	53.00	27.00	1K-24
-32	DAJSM152JM-3030	M30X1.5	26.00	18.50	63.00	32.00	1K-30
-33	DAJSM152JM-3333	M33X1.5	30.00	20.00	71.00	36.00	1K-33
