Location: Home Fluid Connector Hydraulic Adaptors JISDAJSB31000

DAJSB31000 JIS BSPP Female Cap Swivel 60° Cone

DCompanyDME
AProduct RangeAdaptor
JSBThread TypesJIS BSPP
3Adaptor StructureSlip-on Female
1Adaptor StructureStraight
000Other FeaturesNut/Plug

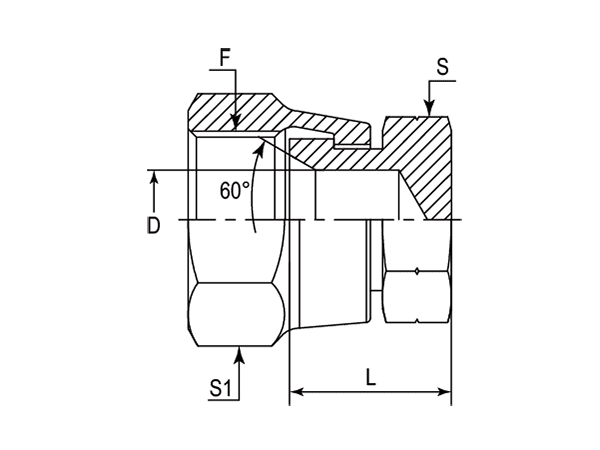

A drawing of DAJSB31000 hydraulic adaptor.

A 3D drawing of DAJSB31000 hydraulic adaptor.

A model drawing of DAJSB31000 hydraulic adaptor.

DME&JDE Code: DAJSB31000
Product Type: hydraulic adaptor
Standard: JIS
Connection Type: Slip-on Female
Thread Types: JIS BSPP Cap Swivel 60° Cone
Other Features: Nut/Plug

Technical Data of DAJSB31000

-04
-06
-08
-10
-12
-16
-20

* Filter the F1 Thread through selecting the -XX options

A drawing of DAJSB31000 hydraulic adaptor.

-	Part Number	F (Thread)	D	L	S	S1	Cross Number
-	-	BSPP	mm	mm	mm	mm	-
-01	DAJSB31000-0400	1/4"-19	4.00	14.50	17.00	19.00	9S-04
-06	DAJSB31000-0600	3/8"-19	6.90	15.50	19.00	22.00	9S-06
-08	DAJSB31000-0800	1/2"-14	9.50	19.00	22.00	27.00	9S-08
-10	DAJSB31000-1000	5/8"-14	9.50	21.00	27.00	30.00	9S-10
-12	DAJSB31000-1200	3/4"-14	15.00	23.50	32.00	32.00	9S-12
-16	DAJSB31000-1600	1"-11	20.00	25.00	36.00	42.00	9S-16
-20	DAJSB31000-2000	1-1/4''-11	26.00	30.00	50.00	50.00	9S-20
