Location: Home Fluid Connector Hydraulic Adaptors JISDAJSBM9041

DAJSBM9041 90° Elbow JIS BSPP Male 60° Cone - BSPP Swivel Female 60°

DCompanyDME
AProduct RangeAdaptor
JSBThread TypesJIS Metric
MConnection TypeMale
9Adaptor Structure90° Elbow
041Connection TypeBSPP Swivel Female

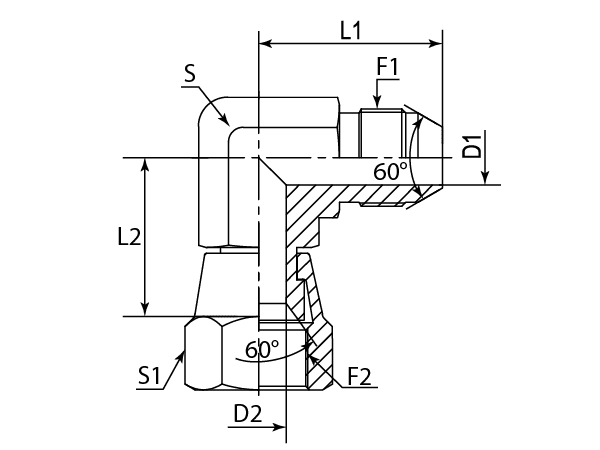

A drawing of DAJSBM9041 hydraulic adaptor.

A 3D drawing of DAJSBM9041 hydraulic adaptor.

A model drawing of DAJSBM9041 hydraulic adaptor.

DME&JDE Code: DAJSBM9041
Product Type: Hydraulic Adaptors
Standard: JIS
Structure: 90° Elbow
Connection Type: Male × Swivel Female
Thread Types: JIS BSPP 60° Cone × BSPP 60°

Technical Data of DAJSBM9041

-04
-06
-08
-12
-16
-20
-24
-32

* Filter the F1 Thread through selecting the -XX options

A drawing of DAJSBM9041 hydraulic adaptor.

-	PART NUMBER	F1 (Thread)	F2 (Thread)	D1	D2	L1	L2	S	S1
-	-	BSPP	BSPP	mm	mm	mm	mm	mm	mm
-01	DAJSBM9041-0404	1/4"-19	1/4"-19	4.00	4.00	27.00	20.00	14	19
-06	DAJSBM9041-0606	3/8"-19	3/8"-19	8.50	6.90	31.75	22.00	19	22
-08	DAJSBM9041-0808	1/2"-14	1/2"-14	9.30	9.50	37.00	24.50	22	27
-12	DAJSBM9041-1212	3/4"-14	3/4"-14	16.70	15.00	42.00	30.00	27	32
-16	DAJSBM9041-1616	1"-11	1"-11	20.00	20.00	47.00	44.00	36	41
-20	DAJSBM9041-2020	1-1/4"-11	1-1/4"-11	28.00	26.00	52.00	50.00	50	50
-24	DAJSBM9041-2424	1-1/2"-11	1-1/2"-11	34.00	33.00	60.50	53.00	55	55
-32	DAJSBM9041-3232	2"-11	2"-11	46.00	46.00	75.00	60.00	65	70
