* Filter the F1 Thread through selecting the -XX options

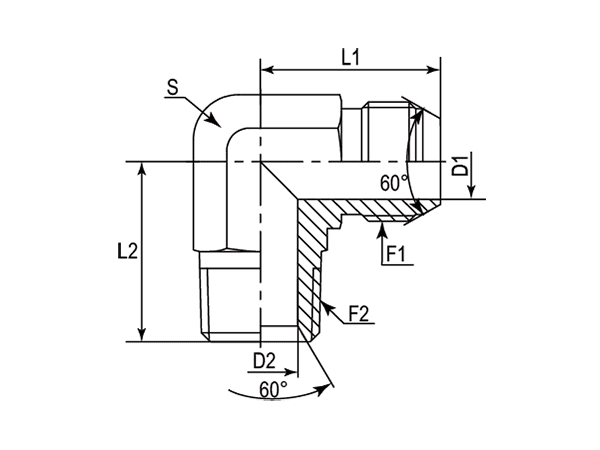

| - | Part Number | F1 (Thread) | F2 (Thread) | D1 | D2 | L1 | L2 | S |
|---|---|---|---|---|---|---|---|---|
| - | - | BSPP | BSPT | mm | mm | mm | mm | mm |
| -01 | DAJSBM907M-0204 | 1/4"-19 | 1/8"-28 | 4.5 | 4.5 | 26 | 22 | 14 |
| -04 | DAJSBM907M-0404 | 1/4"-19 | 1/4"-19 | 4 | 6 | 27.5 | 26 | 14 |
| -04 | DAJSBM907M-0406 | 3/8"-19 | 1/4"-19 | 8.5 | 6 | 31.5 | 26.5 | 17 |
| -06 | DAJSBM907M-0604 | 1/4"-19 | 3/8"-19 | 4 | 8.5 | 30 | 28.5 | 17 |
| -06 | DAJSBM907M-0606 | 3/8"-19 | 3/8"-19 | 8.5 | 9 | 31 | 31 | 19 |
| -06 | DAJSBM907M-0608 | 1/2"-14 | 3/8"-19 | 9 | 9 | 38 | 32.5 | 22 |
| -08 | DAJSBM907M-0806 | 3/8"-19 | 1/2"-14 | 8.5 | 12 | 36 | 36 | 22 |
| -08 | DAJSBM907M-0808 | 1/2"-14 | 1/2"-14 | 9.3 | 12 | 38 | 36 | 22 |
| -08 | DAJSBM907M-0812 | 3/4"-14 | 1/2"-14 | 16 | 16 | 43 | 39.5 | 27 |
| -12 | DAJSBM907M-1208 | 1/2"-14 | 3/4"-14 | 9.3 | 16.7 | 41 | 43.5 | 27 |
| -12 | DAJSBM907M-1212 | 3/4"-14 | 3/4"-14 | 16 | 16.7 | 40 | 41 | 27 |
| -16 | DAJSBM907M-1612 | 3/4"-14 | 1"-11 | 16 | 22.2 | 47 | 50 | 33 |
| -16 | DAJSBM907M-1616 | 1"-11 | 1"-11 | 20 | 22.2 | 48.5 | 50 | 33 |
| -20 | DAJSBM907M-2020 | 1-1/4''-11 | 1-1/4''-11 | 28 | 28 | 57 | 56.5 | 41 |
| -24 | DAJSBM907M-2424 | 1-1/2''-11 | 1-1/2''-11 | 33.3 | 33.3 | 61 | 62.5 | 48 |
| -32 | DAJSBM907M-3232 | 2"-11 | 2"-11 | 46 | 46 | 73.2 | 74.2 | 63 |
