Location: Home Fluid Connector Hydraulic Adaptors JISDAJSBM105F

DAJSBM105F Straight Connector JIS BSPP Male 60° Cone – BSPP Female

DCompanyDME
AProduct RangeAdaptor
JSBThread TypesJIS BSPP
MConnection TypeMale
1Adaptor StructureStraight
05Thread TypesJIS BSPP
FConnection TypeFemale

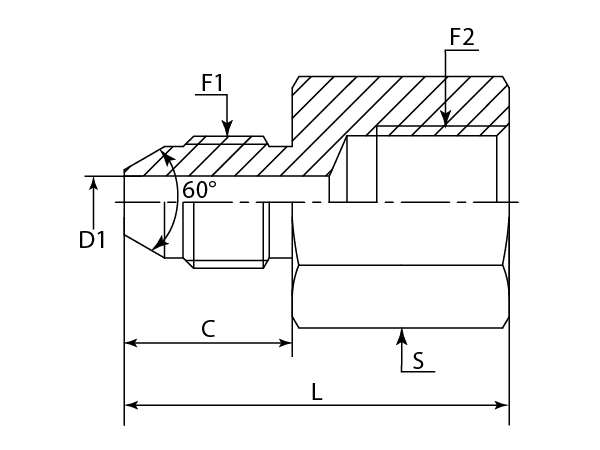

A drawing of DAJSBM105F hydraulic adaptor.

A 3D drawing of DAJSBM105F hydraulic adaptor.

A model drawing of DAJSBM105F hydraulic adaptor.

DME&JDE Code: DAJSBM105F
Product Type: Hydraulic Adaptors
Standard: JIS
Structure: Straight
Connection Type: Male × Female
Thread Types: JIS BSPP 60° Cone × JIS BSPP

Technical Data of DAJSBM105F

-02
-04
-06
-08
-12

* Filter the F1 Thread through selecting the -XX options

A drawing of DAJSBM105F hydraulic adaptor.

-	PART NUMBER	F1 (Thread)	F2 (Thread)	C	D	L	S
-	-	BSPP	BSPP	mm	mm	mm	mm
-01	DAJSBM105F-0202	1/8"-28	1/8"-28	12.00	3.20	27.50	14
-01	DAJSBM105F-0204	1/8"-28	1/4"-19	12.00	3.20	32.00	19
-04	DAJSBM105F-0404	1/4"-19	1/4"-19	16.00	4.00	36.00	19
-04	DAJSBM105F-0406	1/4"-19	3/8"-19	16.00	4.00	36.00	22
-04	DAJSBM105F-0408	1/4"-19	1/2"-14	16.00	4.00	40.00	27
-04	DAJSBM105F-0412	1/4"-19	3/4"-14	16.00	4.00	45.00	32
-06	DAJSBM105F-0608	3/8"-19	1/2"-14	18.00	8.50	39.50	27
-08	DAJSBM105F-0808	1/2"-14	1/2"-14	20.00	9.30	44.00	27
-08	DAJSBM105F-0812	1/2"-14	3/4"-14	20.00	9.30	48.50	32
-08	DAJSBM105F-0816	1/2"-14	1"-11	20.00	9.30	54.00	41
-12	DAJSBM105F-1216	3/4"-14	1"-11	22.00	16.00	56.00	41
