Location: Home Fluid Connector Hydraulic Adaptors JISDAJSBM107M

DAJSBM107M Straight Connector JIS BSPP Male 60° - BSPT Male 60°

DCompanyDME
AProduct RangeAdaptor
JSBThread TypesJIS BSPP
MConnection TypeMale
1Adaptor StructureStraight
07Thread TypesBSPT
MConnection TypeMale

A drawing of DAJSBM107M hydraulic adaptor.

A 3D drawing of DAJSBM107M hydraulic adaptor.

A model drawing of DAJSBM107M hydraulic adaptor.

DME&JDE Code: DAJSBM107M
Product Type: hydraulic adaptor
Standard: JIS
Structure: Straight
Connection Type: Male × Male
Thread Types: JIS BSPP 60° × BSPT 60°

Technical Data of DAJSBM107M

-04
-06
-08
-12
-16
-20
-24
-32

* Filter the F1 Thread through selecting the -XX options

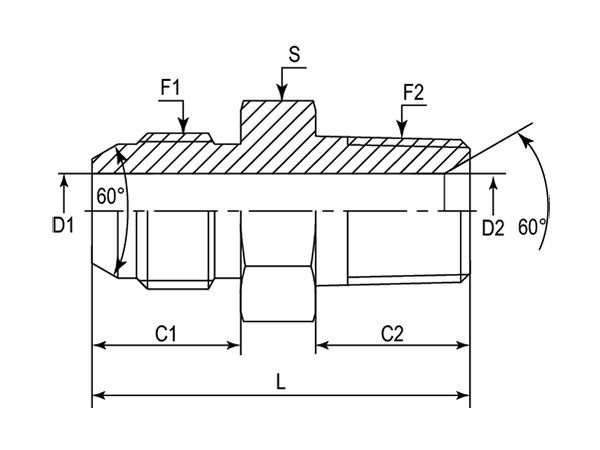

A drawing of DAJSBM107M hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	D1	D2	L	S
-	-	BSPP	BSPT	mm	mm	mm	mm	mm	mm
-01	DAJSBM107M-0404	1/4"-19	1/4"-19	16.00	14.50	4.50	6.00	38.00	17.00
-06	DAJSBM107M-0606	3/8"-19	3/8"-19	18.00	15.00	8.50	8.50	39.00	19.00
-08	DAJSBM107M-0808	1/2"-14	1/2"-14	20.00	19.00	9.30	12.00	47.00	22.00
-12	DAJSBM107M-1212	3/4"-14	3/4"-14	22.00	20.00	16.00	16.00	52.00	30.00
-16	DAJSBM107M-1616	1"-11	1"-11	24.00	25.50	20.00	22.20	62.50	41.00
-20	DAJSBM107M-2020	1-1/4''-11	1-1/4''-11	27.00	25.00	28.00	28.00	65.00	46.00
-24	DAJSBM107M-2424	1-1/2''-11	1-1/2''-11	27.00	25.00	33.30	33.30	67.00	50.00
-32	DAJSBM107M-3232	2"-11	2"-11	30.00	30.00	46.00	46.00	77.00	65.00
