Location: Home Fluid Connector Hydraulic Adaptors JISDAJSBM1000

DAJSBM1000 JIS Male Plug BSPP 60° Cone

DCompanyDME
AProduct RangeAdaptor
JSBThread TypesJIS BSPP
MConnection TypeMale
1Adaptor StructureStraight
000Other FeaturesNut/Plug

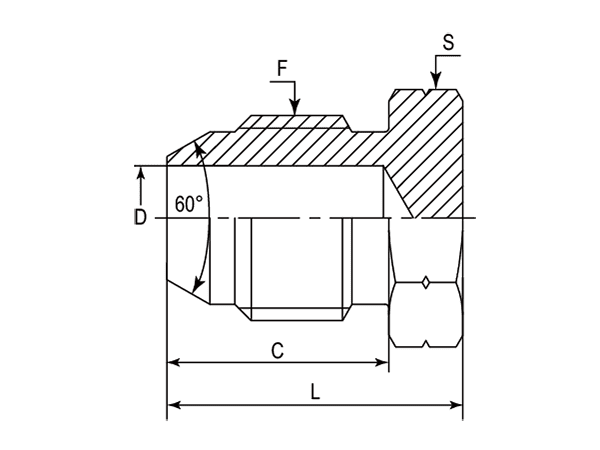

A drawing of DAJSBM1000 hydraulic adaptor.

A 3D drawing of DAJSBM1000 hydraulic adaptor.

A model drawing of DAJSBM1000 hydraulic adaptor.

DME&JDE Code: DAJSBM1000
Product Type: hydraulic adaptor
Adaptor Standard: JIS
Adaptor Connection Type: Male
Thread Types: JIS BSPP 60° Cone
Other Features: Nut/Plug

Technical Data of DAJSBM1000

-02
-04
-06
-08
-12
-16
-20
-24
-32

* Filter the F1 Thread through selecting the -XX options

A drawing of DAJSBM1000 hydraulic adaptor.

-	Part Number	F (Thread)	C	D	L	S	Cross Number
-	-	BSPP	mm	mm	mm	mm	-
-01	DAJSBM1000-0200	1/8"-28	12.00	3.20	18.00	14.00	4S-02
-04	DAJSBM1000-0400	1/4"-19	16.00	4.00	24.00	17.00	4S-04
-06	DAJSBM1000-0600	3/8"-19	18.00	8.50	24.00	19.00	4S-06
-08	DAJSBM1000-0800	1/2"-14	20.00	9.30	28.00	22.00	4S-08
-12	DAJSBM1000-1200	3/4"-14	22.00	16.70	32.00	30.00	4S-12
-16	DAJSBM1000-1600	1"-11	24.00	20.00	35.00	36.00	4S-16
-20	DAJSBM1000-2000	1-1/4''-11	27.00	28.00	40.00	46.00	4S-20
-24	DAJSBM1000-2400	1-1/2''-11	27.00	34.00	42.00	50.00	4S-24
-32	DAJSBM1000-3200	2"-11	30.00	46.00	47.00	65.00	4S-32
