Location: Home Fluid Connector Hose Fittings InterlockDP9ORF-R13

DP9ORF-R13 90° Elbow ORFS Female – Interlock

DCompanyDME
PProduct RangeHose Fitting
9Fitting Structure90° Elbow
ORThread TypesORFS UNF
FConnection TypeFemale
R13Hose FittingInterlock

A drawing of DP9ORF-R13 hydraulic adaptor.

A 3D drawing of DP9ORF-R13 hydraulic adaptor.

A model drawing of DP9ORF-R13 hydraulic adaptor.

DME&JDE Code: DP9ORF-R13
Product Type: hose fitting
Hose Fitting Type: Interlock
Thread Type: UNF
Structure: 90° Elbow
Connection Type: Female

Technical Data of DP9ORF-R13

-12
-16
-20
-24

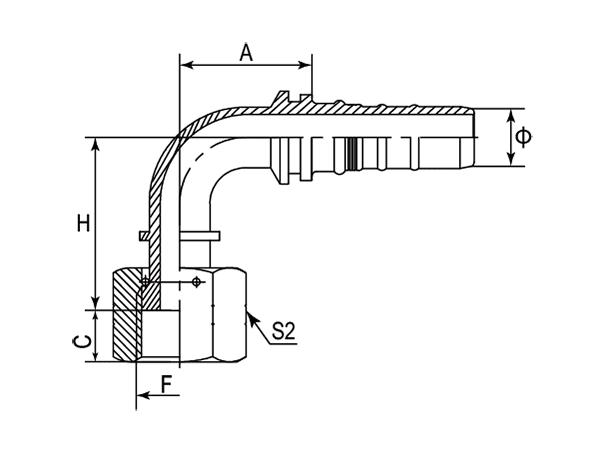

A drawing of DP9ORF-R13 interlock hose fitting.

-	Part Number	F (Thread)	Ø	A	C	H	S2
-	-	UNF	Inch	mm	mm	mm	mm
-01	DP9ORF-R13-1212	1-3/16"-12	20.00	73.80	15.00	80.50	36
-16	DP9ORF-R13-1616	1-7/16"-12	25.00	88.90	15.00	88.50	41
-20	DP9ORF-R13-2020	1-11/16"-12	32.00	105.80	15.00	100.00	50
-24	DP9ORF-R13-2424	2"-12	40.00	123.20	15.00	114.50	60
