Location: Home Fluid Connector Hose Fittings InterlockDP1BPM-R13

DP1BPM-R13 Straight Connector BSPP Male 60° Cone – Interlock

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
BPThread TypesBSPP
MConnection TypeMale
R13Hose FittingInterlock

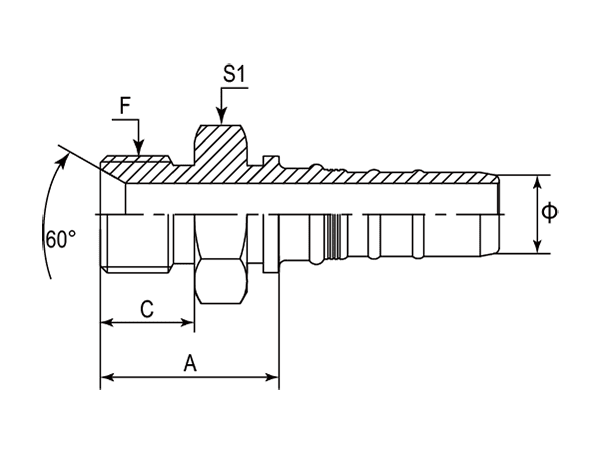

A drawing of DP1BPM-R13 hydraulic adaptor.

A 3D drawing of DP1BPM-R13 hydraulic adaptor.

A model drawing of DP1BPM-R13 hydraulic adaptor.

DME&JDE Code: DP1BPM-R13
Product Type: Hose Fitting
Hose Fitting Type: Interlock
Thread Type: BSPP 60° Cone
Structure: Straight
Connection Type: Male

Technical Data of DP1BPM-R13

-12
-16
-20
-24
-32

A drawing of DP1BPM-R13 interlock hose fitting.

-	Part Number	F (Thread)	Ø	A	C	S1
-	-	BSPP	Inch	mm	mm	mm
-01	DP1BPM-R13-1212	3/4"-14	20.00	37.50	18.50	30
-16	DP1BPM-R13-1616	1"-11	25.00	41.00	20.50	36
-20	DP1BPM-R13-2020	1-1/4"-11	32.00	45.30	20.50	46
-24	DP1BPM-R13-2424	1-1/2"-11	40.00	49.70	23.00	50
-32	DP1BPM-R13-3232	2"-11	50.00	52.00	25.50	60
