Location: Home Fluid Connector Hose Fittings InterlockDP1FS-R13

DP1FS-R13 Straight Connector SAE Flange 6000 PSI – Interlock

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
FSConnection TypeSAE Flange 6000 PSI
R13Hose FittingInterlock

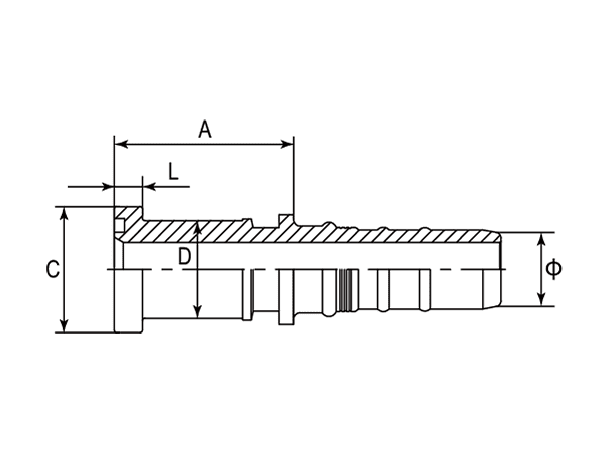

A drawing of DP1FS-R13 hydraulic adaptor.

A 3D drawing of DP1FS-R13 hydraulic adaptor.

A model drawing of DP1FS-R13 hydraulic adaptor.

DME&JDE Code: DP1FS-R13
Product Type: Hose Fitting
Hose Fitting Type: Interlock
Structure: Straight
Connection Type: Flange 6000 PSI

Technical Data of DP1FS-R13

-12
-16
-20
-24
-32

A drawing of DP1FS-R13 interlock hose fitting.

-	Part Number	Flange Size	Ø	A	C	D	L
-	-	-	Inch	mm	mm	mm	mm
-01	DP1FS-R13-1212	3/4"	20.00	53.00	41.30	32.00	8.76
-16	DP1FS-R13-1612	1"	20.00	58.00	47.60	38.00	9.53
-16	DP1FS-R13-1616	1"	25.00	59.40	47.60	38.00	9.53
-20	DP1FS-R13-2016	1-1/4"	25.00	67.40	54.00	44.00	10.29
-20	DP1FS-R13-2020	1-1/4"	32.00	69.80	54.00	44.00	10.29
-20	DP1FS-R13-2024	1-1/4"	40.00	74.70	54.00	44.00	10.29
-24	DP1FS-R13-2420	1-1/2"	32.00	78.80	63.50	51.00	12.57
-24	DP1FS-R13-2424	1-1/2"	40.00	78.70	63.50	51.00	12.57
-32	DP1FS-R13-3224	2"	40.00	91.20	79.40	67.00	12.57
-32	DP1FS-R13-3232	2"	50.00	91.00	79.40	67.00	12.57
