Location: Home Fluid Connector Hose Fittings InterlockDP1BPF-R13

DP1BPF-R13 Straight Connector BSPP Female 60° Cone – Interlock

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
BPThread TypesBSPP
FConnection TypeFemale
R13Hose FittingInterlock

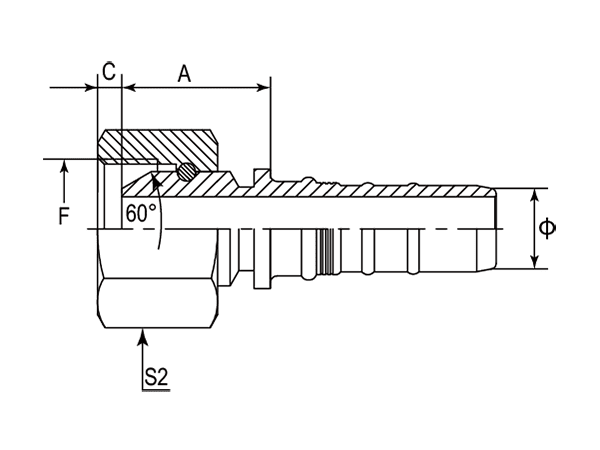

A drawing of DP1BPF-R13 hydraulic adaptor.

A 3D drawing of DP1BPF-R13 hydraulic adaptor.

A model drawing of DP1BPF-R13 hydraulic adaptor.

DME&JDE Code: DP1BPF-R13
Product Type: Hose Fitting
Hose Fitting Type: Interlock
Thread Type: BSPP 60° Cone
Structure: Straight
Connection Type: Female

Technical Data of DP1BPF-R13

-12
-16
-20
-24
-32

A drawing of DP1BPF-R13 interlock hose fitting.

-	Part Number	F (Thread)	Ø	A	C	S2
-	-	BSPP	Inch	mm	mm	mm
-01	DP1BPF-R13-1212	3/4"-14	20.00	27.50	8.70	32
-16	DP1BPF-R13-1616	1"-11	25.00	32.40	10.50	41
-20	DP1BPF-R13-2020	1-1/4"-11	32.00	35.80	10.10	50
-24	DP1BPF-R13-2424	1-1/2"-11	40.00	36.70	12.50	55
-32	DP1BPF-R13-3232	2"-11	50.00	36.50	16.00	70
