DP1MFS-R13 Straight Connector Metric Female 24° Cone + O Ring Heavy Type – Interlock

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 1Fitting StructureStraight
  • MThread TypesMetric
  • FConnection TypeFemale + O Ring
  • R13Hose FittingInterlock
  • SPressure GradeHeavy Type
  • DME&JDE Code: DP1MFS-R13
  • Product Type: Hose Fitting
  • Hose Fitting Type: Interlock
  • Fitting Thread Type: Metric 24° Cone + O Ring Heavy Type
  • Structure: Straight
  • Connection Type: Female
  • Sealing Method: O Rings
Technical Data of DP1MFS-R13
  • -30
  • -36
  • -42
  • -52

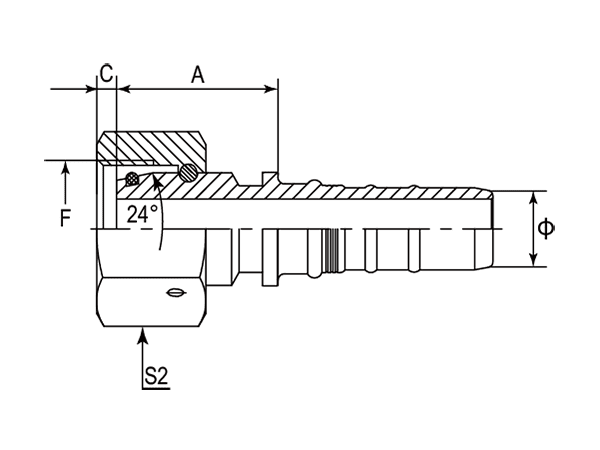

A drawing of DP1MFS-R13 interlock hose fitting.
- Part Number F (Thread) Ø A C S2
- - Metric Inch mm mm mm
-01 DP1MFS-R13-3012 M30X2 20.00 30.00 2.50 36
-36 DP1MFS-R13-3612 M36X2 20.00 38.50 3.50 46
-36 DP1MFS-R13-3616 M36X2 25.00 31.90 3.20 46
-42 DP1MFS-R13-4212 M42X2 20.00 42.00 3.90 50
-42 DP1MFS-R13-4216 M42X2 25.00 33.40 3.90 50
-42 DP1MFS-R13-4220 M42X2 32.00 38.80 3.90 50
-52 DP1MFS-R13-5220 M52X2 32.00 45.30 4.50 60
-52 DP1MFS-R13-5224 M52X2 40.00 38.20 4.50 60
