Location: Home Fluid Connector Hose Fittings InterlockDP1FSCAT-R13

DP1FSCAT-R13 Straight Connector SAE Flange 9000 PSI – Interlock

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
FSCATConnection TypeSAE Flange 9000 PSI
R13Hose FittingInterlock

A drawing of DP1FSCAT-R13 hydraulic adaptor.

A 3D drawing of DP1FSCAT-R13 hydraulic adaptor.

A model drawing of DP1FSCAT-R13 hydraulic adaptor.

DME&JDE Code: DP1FSCAT-R13
Product Type: Hose Fitting
Hose Fitting Type: Interlock
Structure: Straight
Connection Type: Flange 9000 PSI

Technical Data of DP1FSCAT-R13

-12
-16
-20
-24

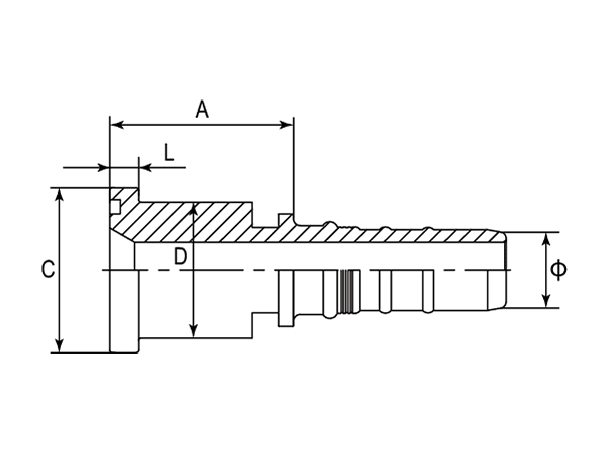

A drawing of DP1FSCAT-R13 interlock hose fitting.

-	Part Number	Flange Size	Ø	A	C	D	L
-	-	-	Inch	mm	mm	mm	mm
-01	DP1FSCAT-R13-1212	3/4"	20.00	58.50	41.30	32.00	14.30
-16	DP1FSCAT-R13-1612	1"	20.00	63.00	47.60	38.00	14.30
-16	DP1FSCAT-R13-1616	1"	25.00	64.40	47.60	38.00	14.30
-20	DP1FSCAT-R13-2016	1-1/4"	25.00	66.80	54.00	43.00	14.30
-20	DP1FSCAT-R13-2020	1-1/4"	32.00	73.80	54.00	43.00	14.30
-24	DP1FSCAT-R13-2420	1-1/2"	32.00	80.60	63.50	51.00	14.30
-24	DP1FSCAT-R13-2424	1-1/2"	40.00	80.70	63.50	51.00	14.30
