DASTH9305 90° Adjustable Elbow Suction Tail for Rubber Hose – SAE Male + O Ring

DCompanyDME
AProduct RangeAdaptor
STHAdaptor TypeSuction Tail
9Fitting Structure90° Elbow
30Thread TypesSAE UNF
5Connection TypeMale + O Ring

A drawing of DASTH9305 hydraulic adaptor.

A 3D drawing of DASTH9305 hydraulic adaptor.

A model drawing of DASTH9305 hydraulic adaptor.

DME&JDE Code: DASTH9305
Product Type: hydraulic adaptor
Hose Fitting Type: Suction Tail
Thread Type: SAE UNF + O Ring
Structure: 90° Elbow
Connection Type: Adjustable Male

Technical Data of DASTH9305

-04
-06
-08
-10
-12
-16
-20
-24
-32

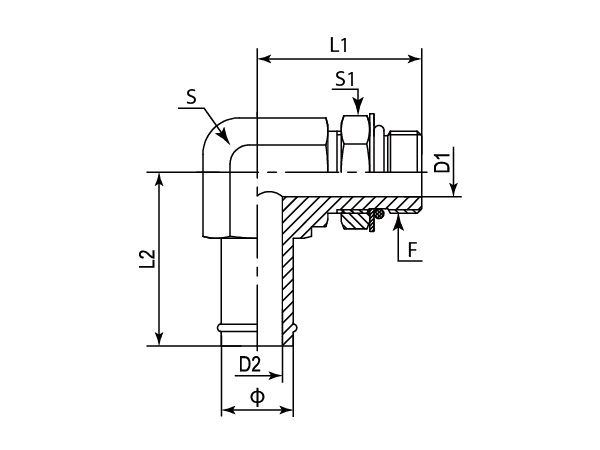

A drawing of DASTH9305 suction tail hydraulic adaptor of DME&JDE.

Technical Data of DASTH9305
-	Part Number	F (Thread)	Ø	D1	D2	L1	L2	S	S1	Cross Number
-	-	UNF	Inch	mm	mm	mm	mm	mm	mm	-
-01	DASTH9305-0404	7/16"-20	6.35	4.37	4.80	26.19	44.45	12.70	14.29	4601-0404
-01	DASTH9305-0406	9/16"-18	6.35	7.54	4.80	31.75	46.02	15.88	17.46	4601-0406
-06	DASTH9305-0604	7/16"-20	9.52	4.37	7.54	30.23	45.97	11.11	14.29	4601-0604
-06	DASTH9305-0606	9/16"-18	9.52	7.54	7.54	31.75	46.02	15.88	17.46	4601-0606
-06	DASTH9305-0608	3/4"-16	9.52	9.93	7.54	37.34	48.01	20.64	25.40	4601-0608
-08	DASTH9305-0806	9/16"-18	12.70	7.54	10.31	46.02	48.41	20.64	17.46	4601-0806
-08	DASTH9305-0808	3/4"-16	12.70	9.93	10.31	36.91	48.41	20.64	22.22	4601-0808
-10	DASTH9305-1008	3/4"-16	15.87	9.93	12.70	36.83	48.26	22.22	22.22	4601-1008
-10	DASTH9305-1010	7/8"-14	15.87	12.29	12.70	43.26	49.99	23.81	25.40	4601-1010
-10	DASTH9305-1012	1-1/16"-12	15.87	15.47	12.70	49.02	52.58	28.58	31.75	4601-1012
-12	DASTH9305-1208	3/4"-16	19.05	9.93	15.90	36.83	52.00	20.64	25.40	4601-1208
-12	DASTH9305-1210	7/8"-14	19.05	12.29	15.90	44.00	56.00	22.22	27.00	4601-1210
-12	DASTH9305-1212	1-1/16"-12	19.05	15.47	15.90	49.20	52.40	28.58	31.75	4601-1212
-12	DASTH9305-1216	1-5/16"-12	19.05	21.44	15.90	51.82	55.63	34.93	38.10	4601-1216
-16	DASTH9305-1608	3/4"-16	25.39	9.93	21.44	40.64	52.07	28.58	22.22	4601-1608
-16	DASTH9305-1612	1-1/16"-12	25.39	15.47	21.44	49.53	51.31	28.58	31.75	4601-1612
-16	DASTH9305-1614	1-3/16"-12	25.39	18.26	21.44	50.80	53.59	31.75	34.93	4601-1614
-16	DASTH9305-1616	1-5/16"-12	25.40	21.44	21.44	52.07	56.50	33.32	38.10	4601-1616
-16	DASTH9305-1620	1-5/8"-12	25.39	27.38	21.44	57.15	59.44	44.45	47.63	4601-1620
-20	DASTH9305-2012	1-1/16"-12	31.74	15.47	27.80	50.80	60.96	41.27	31.75	4601-2012
-20	DASTH9305-2016	1-5/16"-12	31.75	21.44	27.80	51.80	58.90	34.93	38.10	4601-2016
-20	DASTH9305-2020	1-5/8"-12	31.74	27.38	27.80	56.90	66.40	44.45	47.63	4601-2020
-20	DASTH9305-2024	1-7/8"-12	31.74	33.32	27.80	60.96	63.50	50.80	53.98	4601-2024
-24	DASTH9305-2416	1-5/16"-12	38.11	21.44	34.10	60.45	65.30	41.27	38.10	4601-2416
-24	DASTH9305-2420	1-5/8"-12	38.11	27.38	34.10	60.00	66.50	44.45	47.63	4601-2420
-24	DASTH9305-2424	1-7/8"-12	38.10	33.32	34.10	60.70	68.50	47.63	53.98	4601-2424
-32	DASTH9305-3220	1-5/8"-12	50.80	27.38	46.80	73.40	77.70	63.50	47.63	4601-3220
-32	DASTH9305-3224	2-1/2"-12	50.80	33.32	46.80	73.40	77.70	63.50	53.98	4601-3224
-32	DASTH9305-3232	2-1/2"-12	50.80	45.24	46.80	73.40	77.70	63.50	69.85	4601-3232
