Location: Home Fluid Connector Hose Fittings Suction TailDASTH1525

DASTH1525 Straight Suction Tail for Rubber Hose – Metric Male + O Ring Seal

DCompanyDME
AProduct RangeAdaptor
STHAdaptor TypeSuction Tail
1Fitting StructureStraight
525Connection TypeMetric Male + O Ring Seal

A drawing of DASTH1525 hydraulic adaptor.

A 3D drawing of DASTH1525 hydraulic adaptor.

A model drawing of DASTH1525 hydraulic adaptor.

DME&JDE Code: DASTH1525
Product Type: hydraulic adaptor
Hose Fitting Type: Suction Tail
Thread Type: Metric + O Ring Seal
Structure: Straight
Connection Type: Male
Sealing Method: O Rings

Technical Data of DASTH1525

-10

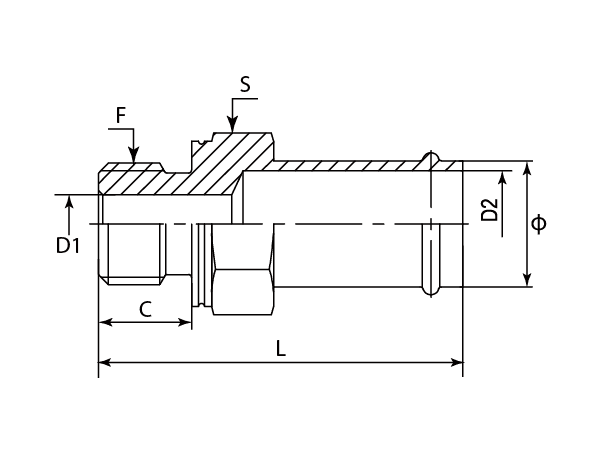

A drawing of DASTH1525 suction tail hydraulic adaptor of DME&JDE.

-	Part Number	F (Thread)	￠	C	D1	D2	L	S	Cross Number
-	-	Metric	mm	mm	mm	mm	mm	mm	-
-01	DASTH1525-1018	M18X1.5	17.55	12.50	11.00	12.70	62.20	24.00	4679-1018
