Location: Home Fluid Connector Hose Fittings ReusableDP9JCF-RU

DP9JCF-RU 90° Swept Elbows JIC Swivel Female – Reusable Tail for R1/R2/R5

DCompanyDME
PProduct RangeHose Fitting
9Fitting Structure90° Swept Elbows
JCThread TypesJIC UNF
FConnection TypeSwivel Female
RUHose Fitting TypeReusable

A drawing of DP9JCF-RU hydraulic adaptor.

A 3D drawing of DP9JCF-RU hydraulic adaptor.

A model drawing of DP9JCF-RU hydraulic adaptor.

DME&JDE Code: DP9JCF-RU
Product Type: Hose Fitting
Hose Fitting Type: Reusable
Available Hoses: 100 R1, 100 R2 or 100 R5
Thread Type: UNF × UNF
Structure: 90° Elbows
Connection Type: Swivel Female

Technical Data of DP9JCF-RU

-04
-06
-08
-10
-12
-16

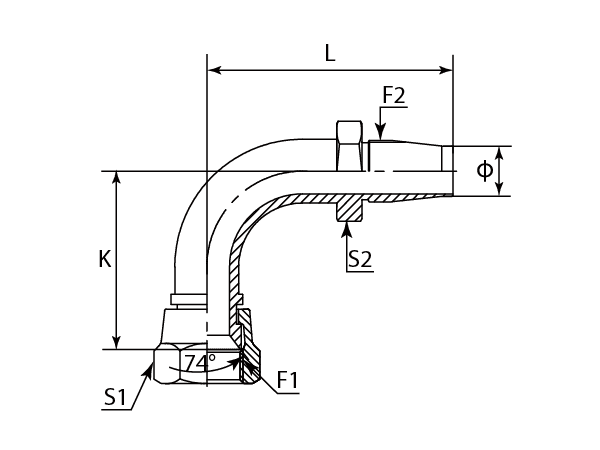

A drawing of DP9JCF-RU reusable hose fitting of DME&JDE.

-	Part Number	F1 (Thread)	F2 (Thread)	Ø	L	K	S1	S2
-	-	UNF	UNF	Inch	mm	mm	mm	mm
-01	DP9JCF-RU-0404	7/16"-20	7/16"-20	6.00	74.00	29.00	17	15
-06	DP9JCF-RU-0606	9/16"-18	9/16"-18	8.80	84.50	32.50	19	17
-08	DP9JCF-RU-0808	3/4"-16	5/8"-18	11.60	88.00	31.00	24	24
-10	DP9JCF-RU-1010	7/8"-14	3/4"-18	14.80	109.70	52.00	27	27
-12	DP9JCF-RU-1212	1-1/16"-12	7/8"-18	18.10	133.10	58.00	32	32
-16	DP9JCF-RU-1616	1-5/16"-12	1-3/16"-16	23.80	144.50	71.00	38.10	36
