Location: Home Fluid Connector Hydraulic Adaptors Test Point AdaptorTP-DABPM1081-BPF

TP-DABPM1081-BPF Test Point BSP Male - BSP Swivel Female with BSP Gage Port BSP

TP Test Point
DCompanyDME
AProduct RangeAdaptor
BPThread TypesBSPP
MConnection TypeMale
1Adaptor StructureStraight
081Connection TypeBSPP Swivel Female
BPFAccessoryBSP Female Gage Port

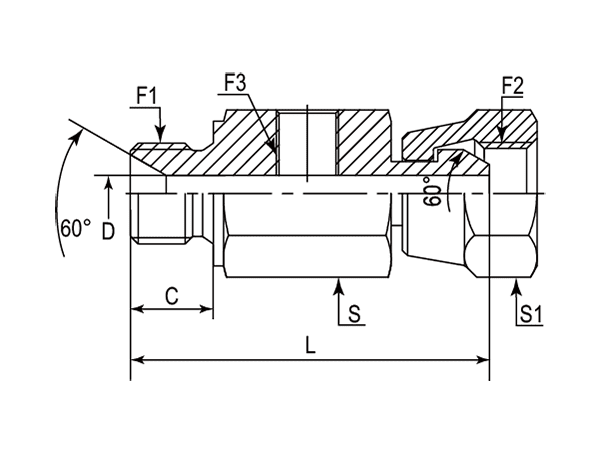

A drawing of TP-DABPM1081-BPF hydraulic adaptor.

A 3D drawing of TP-DABPM1081-BPF hydraulic adaptor.

A model drawing of TP-DABPM1081-BPF hydraulic adaptor.

DME&JDE Code: TP-DABPM1081-BPF
Product Type: hydraulic adaptor
Standard: Test Point
Structure: Straight
Connection Type: Male × Swivel Female × Female
Thread types: BSPP × BSPP × BSP Gage Port

Technical Data of TP-DABPM1081-BPF

-08
-12
-16

* Filter the F1 Thread through selecting the -XX options

A drawing of TP-DABPM1081-BPF hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	F3 (Thread)	C	D	L	S	S1
-	-	BSPP	BSPP	BSPP	mm	mm	mm	mm	mm
-01	TP-DABPM1081-BPF-080802	1/2"-14	1/2"-14	1/8"-28	14.00	11.10	50.00	27.00	27.00
-12	TP-DABPM1081-BPF-121202	3/4"-14	3/4"-14	1/8"-28	16.00	16.70	54.50	32.00	32.00
-12	TP-DABPM1081-BPF-121204	3/4"-14	3/4"-14	1/4"-19	16.00	16.70	54.50	32.00	32.00
-16	TP-DABPM1081-BPF-161602	1"-11	1"-11	1/8"-28	19.00	22.20	59.50	41.00	41.00
-16	TP-DABPM1081-BPF-161604	1"-11	1"-11	1/4"-19	19.00	22.20	59.50	41.00	41.00
