Ultra Soft & Flexible
New-Standard

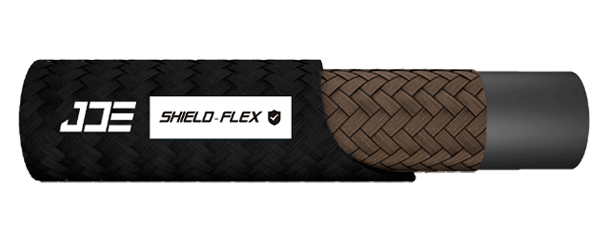

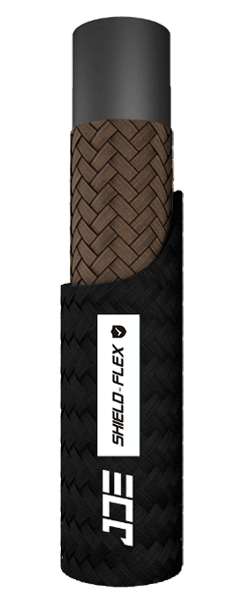

Synthetic rubber, extruded whole without joints, of uniform thickness
Black Color textile braided cover
20 Bar / 290 PSI
| Part Number | Hose Size | I.D. | R.O.D. | O.D. | Operating Pressure | Burst Pressure | Bend Radius | Weight | Length Per PCS | Ferrule | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | Dash Size | mm | inch | mm | mm | mm | bar | psi | bar | psi | mm | kgs/m | meter | DME Code |
| JDE 331106-05 | -03 | 4.8 | 3/16'' | 4.4-5.2 | - | 10.0-11.6 | 20 | 290 | 80 | 1160 | 50 | 0.100 | 50/100 | PUSH-ON-R6/1TE-03 |
| JDE 331106-06 | -04 | 6.4 | 1/4'' | 5.9-6.9 | - | 11.6-13.5 | 20 | 290 | 80 | 1160 | 65 | 0.110 | 50/100 | PUSH-ON-R6/1TE-04 |
| JDE 331106-08 | -05 | 8.0 | 5/16'' | 7.4-8.4 | - | 13.1-15.1 | 20 | 290 | 80 | 1160 | 75 | 0.130 | 50/100 | PUSH-ON-R6/1TE-05 |
| JDE 331106-10 | -06 | 9.5 | 3/8'' | 9.0-10.0 | - | 14.7-16.7 | 20 | 290 | 80 | 1160 | 75 | 0.160 | 50/100 | PUSH-ON-R6/1TE-06 |
| JDE 331106-12 | -08 | 12.7 | 1/2'' | 12.1-13.3 | - | 17.7-20.6 | 20 | 290 | 80 | 1160 | 100 | 0.220 | 50/100 | PUSH-ON-R6/1TE-08 |
| JDE 331106-16 | -10 | 16.0 | 5/8'' | 15.3-16.5 | - | 21.9-23.9 | 20 | 290 | 80 | 1160 | 125 | 0.270 | 50/100 | PUSH-ON-R6/1TE-10 |
| JDE 331106-19 | -12 | 19.0 | 3/4'' | 18.2-19.8 | - | 25.4-27.8 | 20 | 290 | 80 | 1160 | 150 | 0.330 | 50/100 | PUSH-ON-R6/1TE-12 |
| JDE 331106-25 | -16 | 25.4 | 1'' | 24.6-26.2 | - | 32.8-35.9 | 12.0 | 174 | 48 | 696 | 155.0 | 0.5 | 50/100 | PUSH-ON-R6/1TE-16 |
Cover Type: Textile fabrics
Packing Type: Roll, Pallet, Reel
Outward Appearance: Black
