Location: Home Fluid Connector Hose Fittings Push-OnDP1JCM-PO

DP1JCM-PO Straight JIC Male 74° Cone – Push On Tail

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
JCThread TypesJIC UNF
MConnection TypeMale
POHose Fitting TypePush On Tail

A drawing of DP1JCM-PO hydraulic adaptor.

A 3D drawing of DP1JCM-PO hydraulic adaptor.

A model drawing of DP1JCM-PO hydraulic adaptor.

DME&JDE Code: DP1JCM-PO
Product Type: Hose Fitting
Hose Fitting Type: Push-On
Fitting Thread Type: JIC UNF 74° Cone
Structure: Straight
Connection Type: Male

Technical Data of DP1JCM-PO

-04
-06
-08
-12

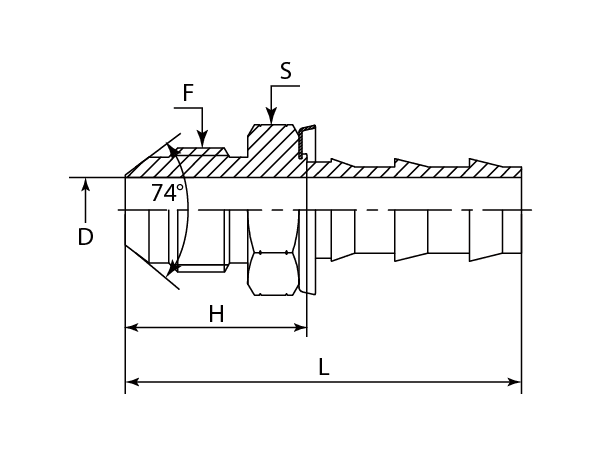

A drawing of DP1JCM-PO push on tail of DME&JDE.

-	Part Number	F (Thread)	Ø	D	H	L	S
-	-	UNF	Inch	mm	mm	mm	mm
-01	DP1JCM-0404PO	7/16"-20	6.70	4.30	22.00	40.00	12.00
-06	DP1JCM-0604PO	9/16"-18	6.70	4.30	22.00	40.00	17.00
-06	DP1JCM-0606PO	9/16"-18	9.90	7.50	22.00	40.00	17.00
-08	DP1JCM-0806PO	3/4"-16	9.90	7.50	27.20	48.40	22.00
-08	DP1JCM-0808PO	3/4"-16	13.20	9.90	27.20	52.70	22.00
-10	DP1JCM-1010PO	7/8"-14	16.25	12.20	30.00	69.00	24.00
-10	DP1JCM-1012PO	7/8"-14	19.50	15.50	29.40	68.00	24.00
-12	DP1JCM-1208PO	1-1/16"-12	13.20	9.90	34.50	60.00	30.00
-12	DP1JCM-1210PO	1-1/16"-12	16.25	12.20	34.00	73.00	30.00
-12	DP1JCM-1212PO	1-1/16"-12	19.50	15.50	33.40	72.00	30.00
