Location: Home Fluid Connector Hose Fittings Push-OnDP1JCF-PO

DP1JCF-PO Straight JIC Swivel Female 74° – Push On Tail

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
JCThread TypesJIC UNF
FConnection TypeSwivel Female
POHose Fitting TypePush On Tail

A drawing of DP1JCF-PO hydraulic adaptor.

A 3D drawing of DP1JCF-PO hydraulic adaptor.

A model drawing of DP1JCF-PO hydraulic adaptor.

DME&JDE Code: DP1JCF-PO
Product Type: Hose Fitting
Hose Fitting Type: Push-On
Thread Type: JIC UNF 74°
Structure: Straight
Connection Type: Swivel Female

Technical Data of DP1JCF-PO

-04
-06
-08
-10
-12
-16

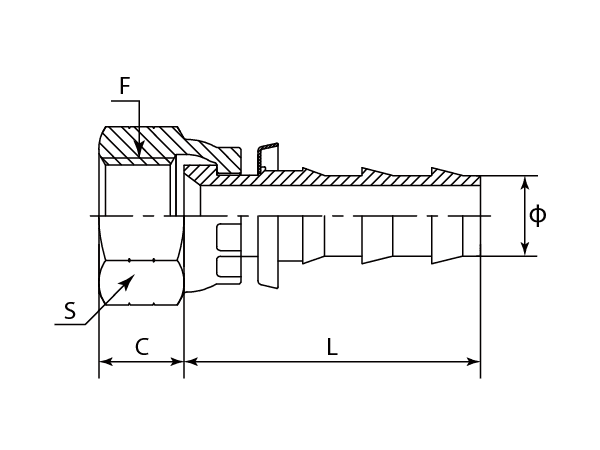

A drawing of DP1JCF-PO push on tail of DME&JDE.

-	Part Number	F (Thread)	Ø	C	L	S
-	-	UNF	mm	mm	mm	mm
-01	DP1JCF-0404PO	7/16"-20	6.70	8.50	30.40	17.00
-06	DP1JCF-0606PO	9/16"-18	9.90	9.50	36.70	19.00
-08	DP1JCF-0806PO	3/4"-16	9.90	11.50	39.20	24.00
-08	DP1JCF-0808PO	3/4"-16	13.20	11.50	41.40	24.00
-10	DP1JCF-1008PO	7/8"-14	13.20	13.00	41.90	27.00
-10	DP1JCF-1010PO	7/8"-14	16.25	13.00	52.30	27.00
-12	DP1JCF-1212PO	1-1/16"-12	19.50	14.50	53.00	32.00
-16	DP1JCF-1616PO	1-5/16"-12	25.60	15.50	64.80	41.00
