Location: Home Fluid Connector Hose Fittings One PieceDP9FLF

DP9FLF 90° Elbow SAE Flange Code 61 (3000PSI) – One Piece

DCompanyDME
PProduct RangeHose Fitting
9Fitting Structure90° Elbow
FLConnection TypeSAE Flange Code 61 (3000 PSI)
FHose Fitting TypeOne Piece

A drawing of DP9FLF hydraulic adaptor.

A 3D drawing of DP9FLF hydraulic adaptor.

A model drawing of DP9FLF hydraulic adaptor.

DME&JDE Code: DP9FLF
Product Type: Hose Fitting
Hose Fitting Type: One Piece
Structure: 90° Elbow
Connection Type: Flange Code 61

Technical Data of DP9FLF

-08
-12
-16
-20
-24
-32

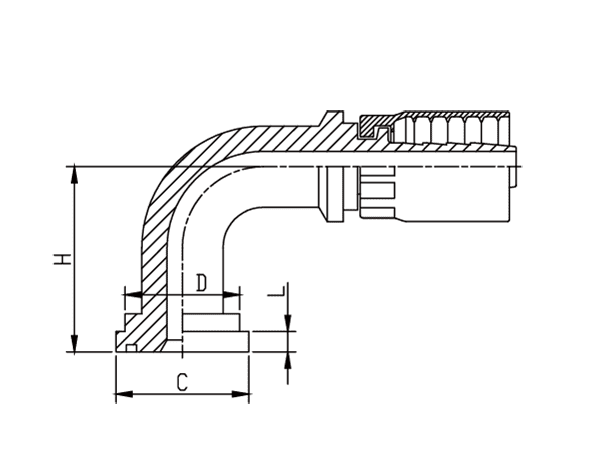

A drawing of DP9FLF one piece hose fitting of DME&JDE.

-	Part Number	Flange	Ø	C	D	H
-	-	Size	Inch	mm	mm	mm
-01	DP9FLF-0808	1/2"	12.00	30.20	24.00	47.00
-12	DP9FLF-1212	3/4"	20.00	38.10	32.00	62.00
-16	DP9FLF-1616	1"	25.00	44.40	38.00	67.00
-20	DP9FLF-2020	1-1/4"	32.00	50.80	43.00	78.00
-24	DP9FLF-2424	1-1/2"	40.00	60.30	50.00	94.00
-32	DP9FLF-3232	2"	50.00	71.40	60.00	114.00
