Location: Home Fluid Connector Hose Fittings One PieceDP1FLF

DP1FLF Straight Connector SAE Flange Code 61 (3000 PSI) – One Piece

DCompanyDME
PProduct RangeHose Fitting
1Fitting StructureStraight
FLConnection TypeSAE Flange Code 61 (3000 PSI)
FHose Fitting TypeOne Piece

A drawing of DP1FLF hydraulic adaptor.

A 3D drawing of DP1FLF hydraulic adaptor.

A model drawing of DP1FLF hydraulic adaptor.

DME&JDE Code: DP1FLF
Product Type: Hose Fitting
Hose Fitting Type: One Piece
Structure: Straight
Connection Type: Flange Code 61

Technical Data of DP1FLF

-08
-12
-16
-20
-24
-32

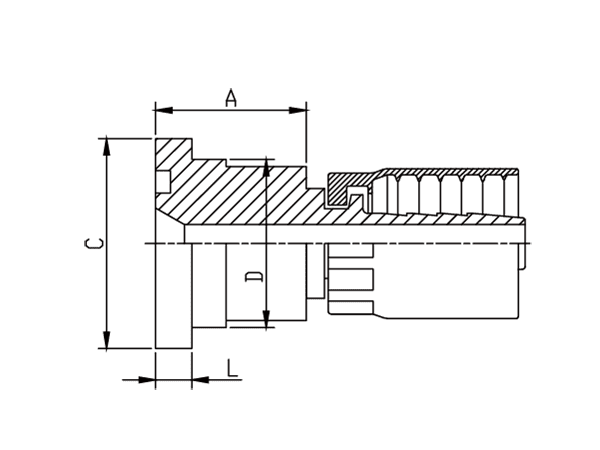

A drawing of DP1FLF one piece hose fitting of DME&JDE.

-	Part Number	Flange	Ø	A	C	D	L
-	-	Size	Inch	mm	mm	mm	mm
-01	DP1FLF-0808	1/2"	12.00	46.00	30.20	24.00	6.00
-12	DP1FLF-1212	3/4"	20.00	48.00	38.10	32.00	6.00
-16	DP1FLF-1616	1"	25.00	52.00	44.40	38.00	8.00
-20	DP1FLF-2020	1-1/4"	32.00	58.00	50.80	43.00	8.00
-24	DP1FLF-2424	1-1/2"	40.00	68.00	60.30	50.00	8.00
-32	DP1FLF-3232	2"	50.00	70.00	71.40	62.00	9.53
