Location: Home Fluid Connector Hose Fittings One PieceDP4FSF

DP4FSF 45° Elbow SAE Flange Code 62 (6000 PSI) – One Piece

DCompanyDME
PProduct RangeHose Fitting
4Fitting Structure45° Elbow
FSConnection TypeSAE Flange Code 62 (6000 PSI)
FHose Fitting TypeOne Piece

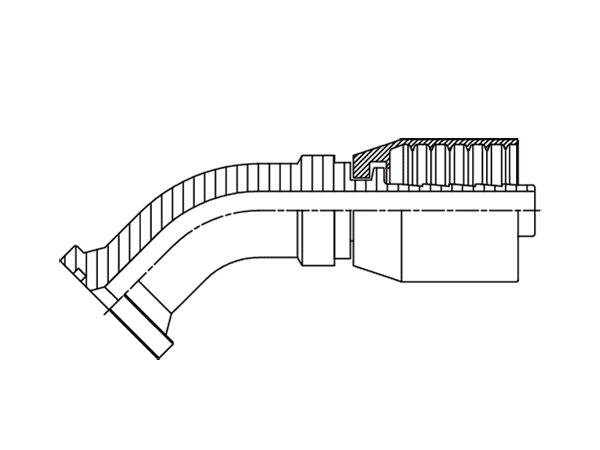

A 3D drawing of DP4FSF hydraulic adaptor.

A model drawing of DP4FSF hydraulic adaptor.

DME&JDE Code: DP4FSF
Product Type: Hose Fittings
Hose Fitting Type: One Piece
Structure: 45° Elbow
Connection Type: Flange Code 62

Technical Data of DP4FSF

-12
-16
-20

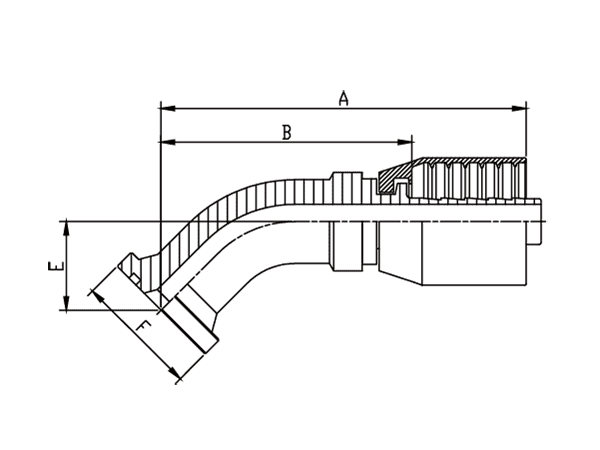

A drawing of DP4FSF one piece hose fitting of DME&JDE.

-	PART NUMBER	FLANGE	Ø	A	B	E	F
-	-	SIZE	Inch	mm	mm	mm	mm
-01	DP4FSF-1212	3/4"	3/4"	97.00	60.50	25.90	1-5/8"
-16	DP4FSF-1616	1"	1"	118.40	77.20	32.00	1-7/8"
-20	DP4FSF-2016	1 1/4"	1"	16.10	74.90	26.90	2-1/8"

Certificate

ISO 9001

ISO 14001

ISO 45001

MSHA

IATF

BV

DAkkS

SGS

GOST

DEKRA

DIN

SAE

MA

WSF

Other Items You Might Like

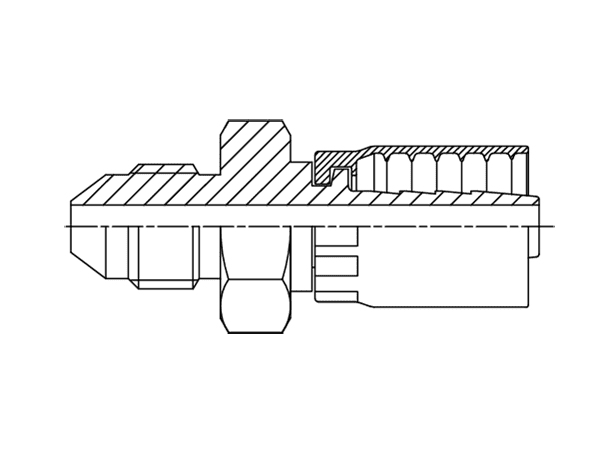

DP1JCMF

Straight Connector JIC Male 74° Cone – One Piece

DP1JCFF

Straight Connector JIC Female 74° Cone – One Piece

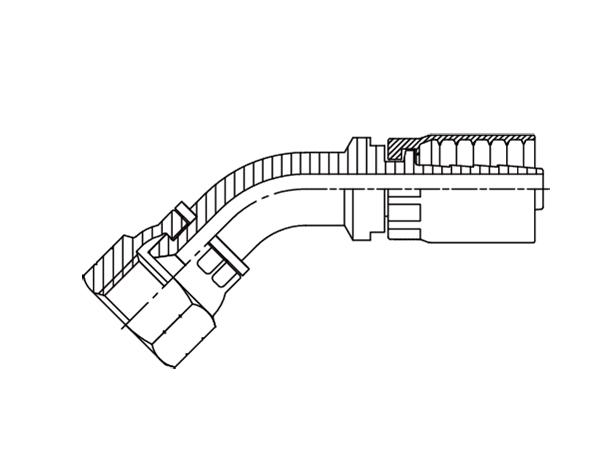

DP4JCFF

45° Elbow JIC Female 74° – One Piece

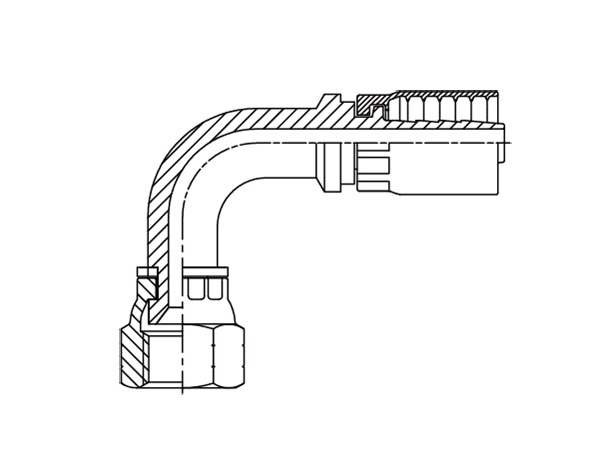

DP9JCFF

90° Elbow JIC Female 74° Cone – One Piece

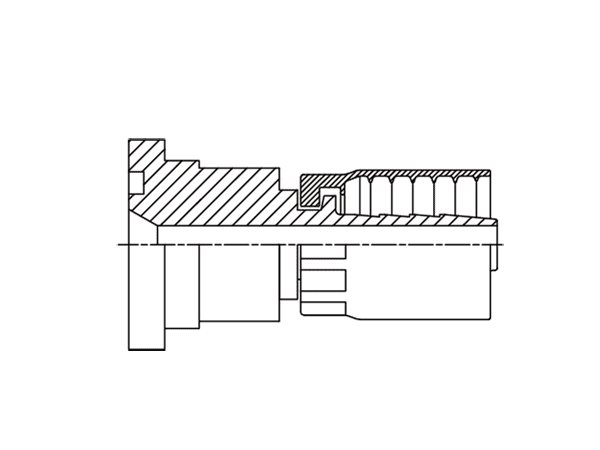

DP1FLF

Straight Connector SAE Flange Code 61 (3000 PSI) – One Piece

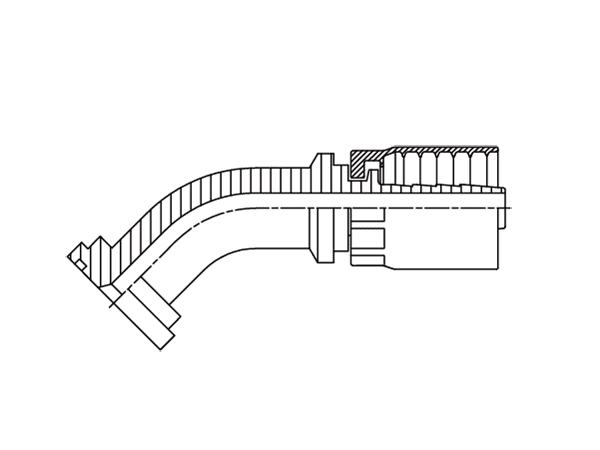

DP4FLF

45° Elbow SAE Flange Code 61 (3000 PSI) – One Piece

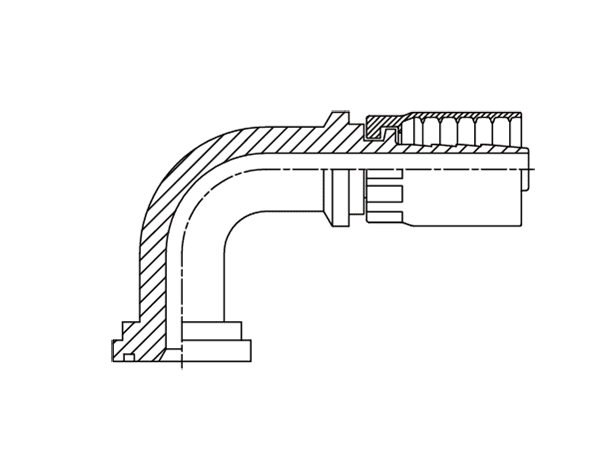

DP9FLF

90° Elbow SAE Flange Code 61 (3000PSI) – One Piece

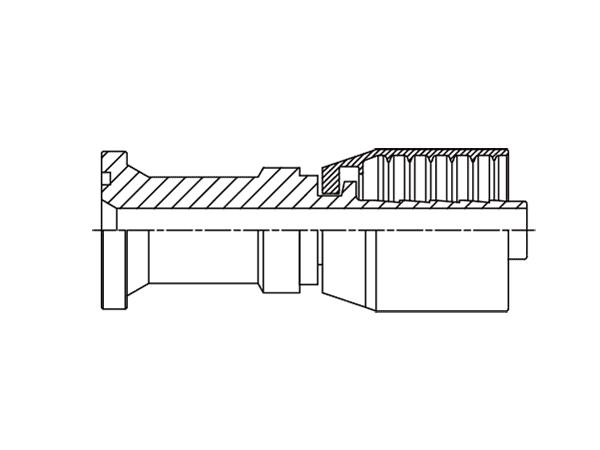

DP1FSF

Straight Connector SAE Flange Code 62 (6000 PSI) – One Piece

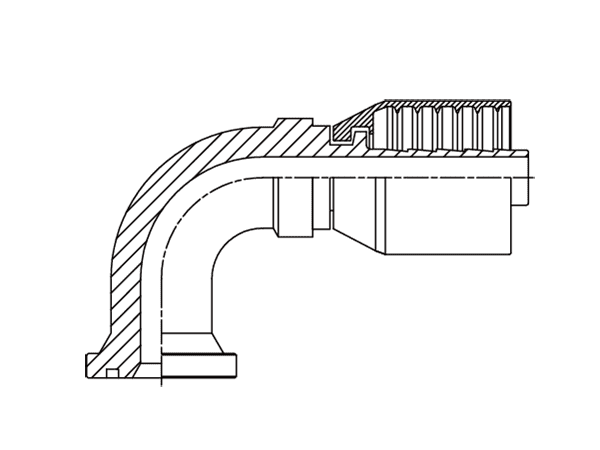

DP9FSF

90° Elbow SAE Flange Code 62 (6000 PSI) – One Piece

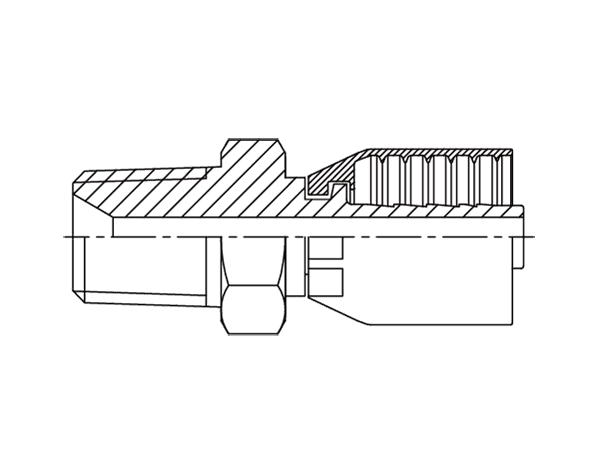

DP1NPMF

Straight Connector NPTF Male 60° Cone – One Piece

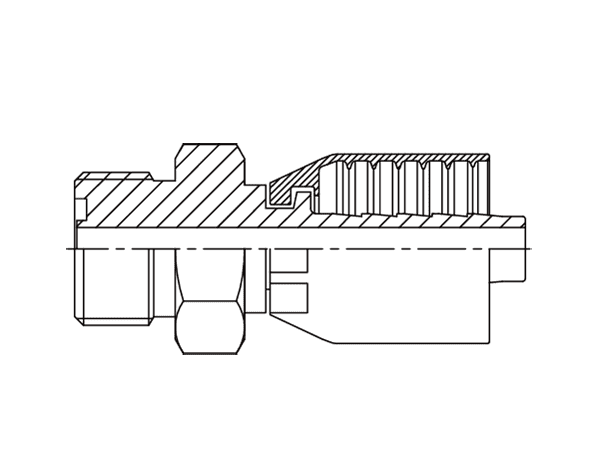

DP1ORMF

Straight Connector ORFS Male Cone– One Piece

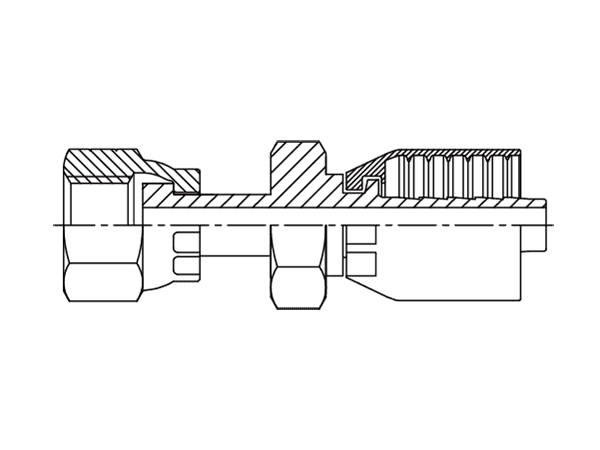

DP1ORFF

Straight Connector ORFS Female Cone – One Piece

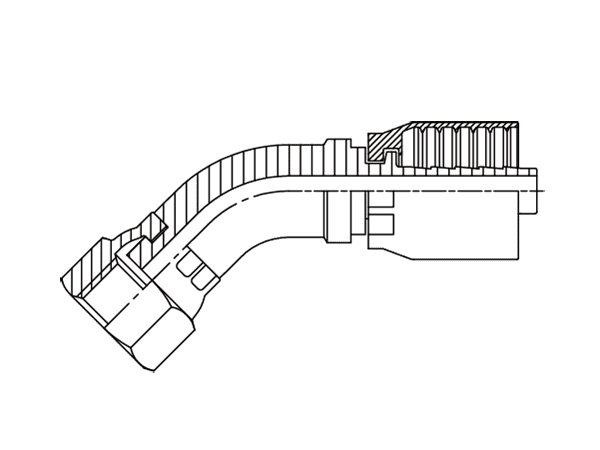

DP4ORFF

45° Elbow ORFS Female Cone – One Piece

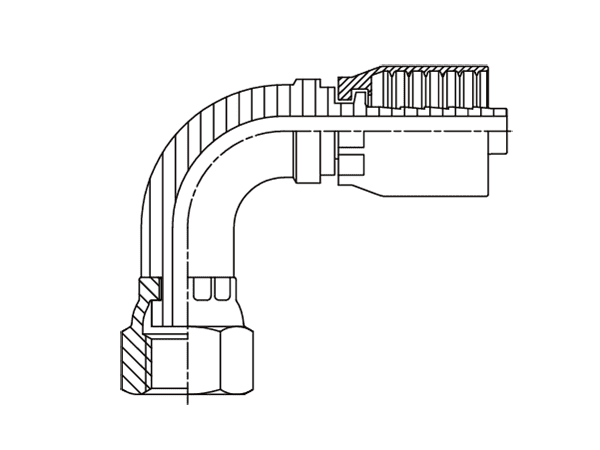

DP9ORFF
