DP4JCFF 45° Elbow JIC Female 74° – One Piece

  • DCompanyDME
  • PProduct RangeHose Fitting
  • 4Fitting Structure45° Elbow
  • JCThread TypesJIC UNF
  • FConnection TypeFemale
  • FHose Fitting TypeOne Piece
  • DME&JDE Code: DP4JCFF
  • Product Type: Hose Fitting
  • Hose Fitting Type: One Piece
  • Thread Type: JIC UNF 74° Cone
  • Structure: 45° Elbow
  • Connection Type: Female
Technical Data of DP4JCFF
  • -04
  • -05
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24
  • -32

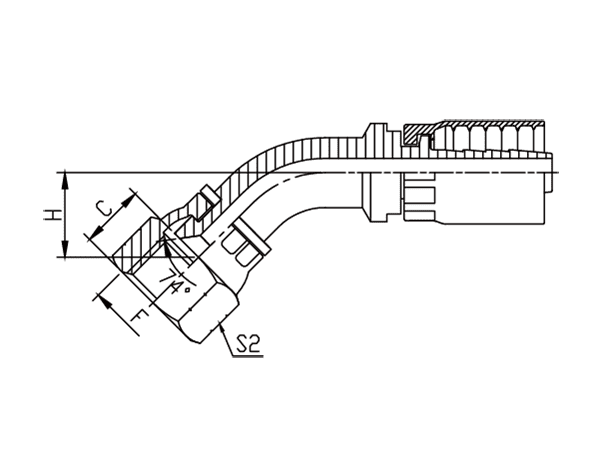

A drawing of DP4JCFF one piece hose fitting of DME&JDE.
- Part Number F (Thread) Ø C H S2
- - UNF Inch mm mm mm
-01 DP4JCFF-0404 7/16"-20 6.00 9.00 18.10 15
-05 DP4JCFF-0505 1/2"-20 8.00 9.50 19.30 17
-06 DP4JCFF-0606 9/16"-18 10.00 10.50 20.00 19
-08 DP4JCFF-0808 3/4"-16 12.00 11.00 23.50 24
-10 DP4JCFF-1010 7/8"-14 16.00 13.00 25.30 27
-12 DP4JCFF-1212 1-1/16"-12 20.00 15.00 30.00 32
-16 DP4JCFF-1616 1-5/16"-12 25.00 16.00 31.50 41
-20 DP4JCFF-2020 1-5/8"-12 32.00 17.00 36.60 50
-24 DP4JCFF-2424 1-7/8"-12 40.00 20.00 41.60 55
-32 DP4JCFF-3232 2-1/2"-12 50.00 23.50 49.50 75
