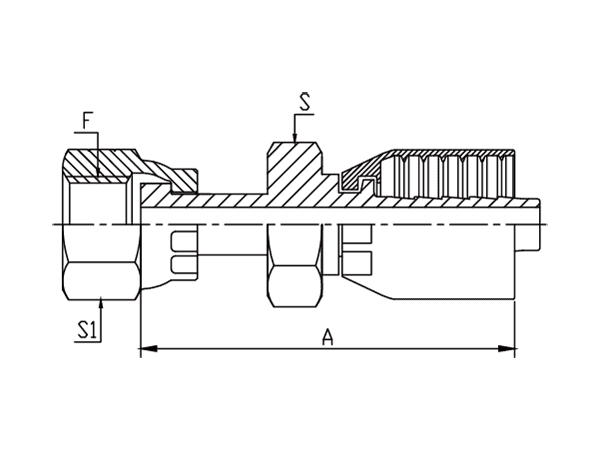

| - | PART NUMBER | F (Thread) | Ø | A | S |
|---|---|---|---|---|---|
| - | - | UNF | Inch | mm | mm |
| -01 | DP1ORFF-0404 | 9/16"-18 | 1/4" | 53 | 11/16" |
| -01 | DP1ORFF-0406 | 9/16"-18 | 3/8" | 56 | 11/16" |
| -06 | DP1ORFF-0604 | 11/16"-16 | 1/4" | 54 | 13/16" |
| -06 | DP1ORFF-0606 | 11/16"-16 | 3/8" | 58 | 13/16" |
| -08 | DP1ORFF-0608 | 11/16"-16 | 1/2" | 64 | 13/16" |
| -08 | DP1ORFF-0806 | 13/16"-16 | 3/8" | 64 | 15/16" |
| -08 | DP1ORFF-0808 | 13/16"-16 | 1/2" | 67 | 15/16" |
| -08 | DP1ORFF-0810 | 13/16"-16 | 5/8" | 72 | 15/16" |
| -10 | DP1ORFF-1008 | 1"-14 | 1/2" | 73 | 1-1/8" |
| -10 | DP1ORFF-1010 | 1"-14 | 5/8" | 78 | 1-1/8" |
| -10 | DP1ORFF-1012 | 1"-14 | 3/4" | 78 | 1-1/8" |
| -12 | DP1ORFF-1210 | 1-3/16"-12 | 5/8" | 81 | 1-3/8" |
| -12 | DP1ORFF-1212 | 1-3/16"-12 | 3/4" | 84 | 1-3/8" |
| -16 | DP1ORFF-1612 | 1-7/16"-12 | 3/4" | 86 | 1-5/8" |
| -16 | DP1ORFF-1616 | 1-7/16"-12 | 1" | 92 | 1-5/8" |
| -20 | DP1ORFF-2016 | 1-11/16"-12 | 1" | 92 | 1-7/8" |
| -20 | DP1ORFF-2020 | 1-11/16"-12 | 1 1/4" | 96 | 1-7/8" |
| -24 | DP1ORFF-2424 | 2"-12 | 1 1/2" | 99 | 2-1/4" |
