Location: Home Fluid Connector Hose Fittings FerruleDPF5T

DPF5T No-Skive Ferule For SAE100 R5 Hose

DCompanyDME
PProduct RangeHose Fitting
FHose Fitting TypeFerrule
5TAvailable Hose TypeSAE100 R5

A 3D drawing of DPF5T hydraulic adaptor.

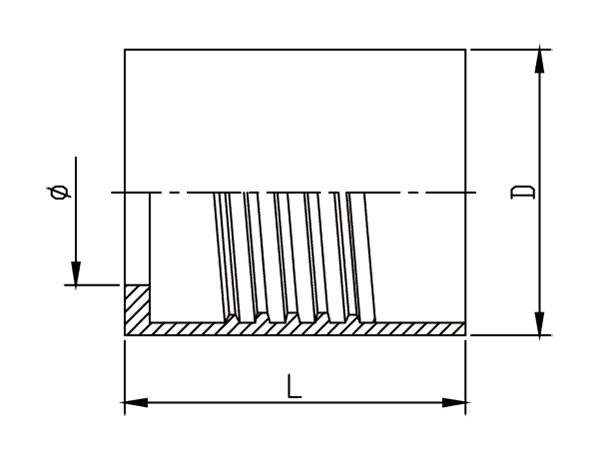

A model drawing of DPF5T hydraulic adaptor.

DME&JDE Code: DPF5T
Product Type: Hose Fittings
Hose Fitting Type: Ferrule
Available Hose Type: SAE100 R5

Technical Data of DPF5T

-03
-04
-05
-06
-08
-10

-	PART NUMBER	Ø	D	L
-	-	Inch	mm	mm
-01	DPF5T-03	3/16"	18.70	27.00
-04	DPF5T-04	1/4"	19.50	30.00
-05	DPF5T-05	5/16"	21.60	32.00
-06	DPF5T-06	3/8"	25.00	32.00
-08	DPF5T-08	1/2"	28.50	34.00
-10	DPF5T-10	5/8"	33.00	37.00
