Location: Home Fluid Connector Hose Fittings FerruleDPF4T-NK

DPF4T-NK No-Skive Ferule For SAE100 R9 R12 4SP 4SH Hose

DCompanyDME
PProduct RangeHose Fitting
FHose Fitting TypeFerrule
4TAvailable Hose TypeSAE100 R9 R12 4SP 4SH
NKFerrule TypeNo-Skive

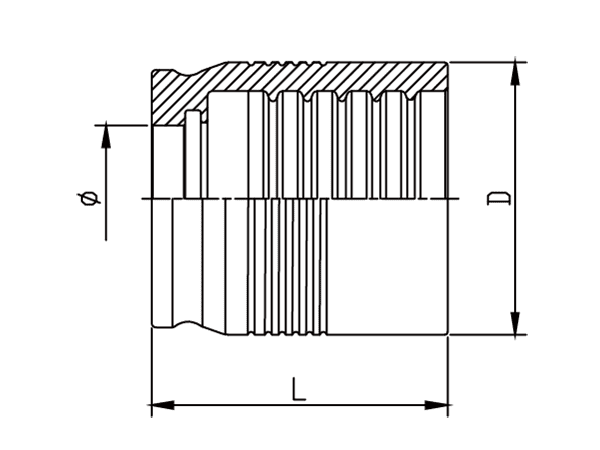

A drawing of DPF4T-NK hydraulic adaptor.

A 3D drawing of DPF4T-NK hydraulic adaptor.

A model drawing of DPF4T-NK hydraulic adaptor.

DME&JDE Code: DPF4T-NK
Product Type: Hose Fittings
Hose Fitting Type: Ferrule
Available Hose Type: SAE100 R9 R12 4SP 4SH

Technical Data of DPF4T-NK

-06
-08
-10
-12
-16

-	PART NUMBER	Ø	D	L
-	-	Inch	mm	mm
-01	DPF4T-NK-06	3/8"	30.00	31.00
-08	DPF4T-NK-08	1/2"	34.80	34.00
-10	DPF4T-NK-10	5/8"	40.00	37.00
-12	DPF4T-NK-12	3/4"	44.50	42.00
-16	DPF4T-NK-16	1"	50.80	56.00
