DPF01SN Ferrule For SAE100 R1AT/EN 853 1SN Hose

  • DCompanyDME
  • PProduct RangeHose Fitting
  • FHose Fitting TypeFerrule
  • 01SNAvailable Hose TypeSAE100 R1AT/EN 853 1SN
  • DME&JDE Code: DPF01SN
  • Product Type: Hose Fittings
  • Hose Fitting Type: Ferrule
  • Available Hose Type: SAE100 R1AT/EN 853 1SN
Technical Data of DPF01SN
  • -03
  • -04
  • -05
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24
  • -32

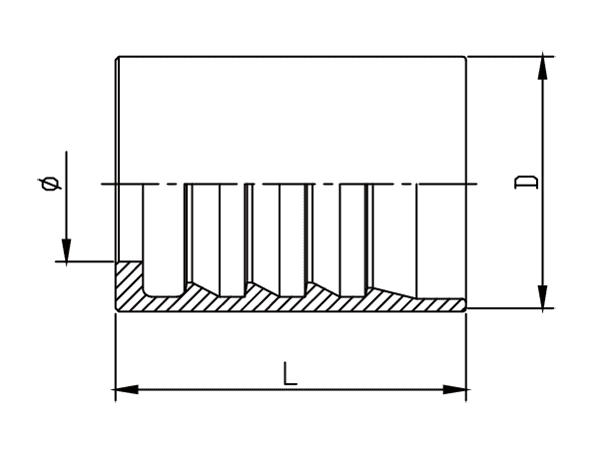

A drawing of DPF01SN no-skive ferrule.
- PART NUMBER Ø D L
- - Inch mm mm
-01 DPF01SN-03 3/16" 17.50 24.50
-04 DPF01SN-04 1/4" 19.80 30.00
-05 DPF01SN-05 5/16" 20.80 31.00
-06 DPF01SN-06 3/8" 23.30 32.00
-08 DPF01SN-08 1/2" 27.00 34.00
-10 DPF01SN-10 5/8" 30.00 37.00
-12 DPF01SN-12 3/4" 34.00 43.00
-16 DPF01SN-16 1" 42.60 50.00
-20 DPF01SN-20 1-1/4" 52.00 59.00
-24 DPF01SN-24 1-1/2" 58.00 74.00
-32 DPF01SN-32 2" 72.00 78.00
