1SN Wire Braided Fluid Hose

  • An icon shows the hose of DME&JDE can withstand minimum -50 °C temperature.
Applicable Specs:
  • DIN EN 853 1SN
  • EXCEEDS SAE 100R1AT
  • ISO 1436:2009
  • TS 6387 EN 853 1SN
  • ISO 1307 / EN 1804-3
  • ISO 6805 / EN 13463-1
Applications:
An icon of engineering equipment of hydraulic hose application. An icon of agricultural equipment of hydraulic hose application. An icon of automation equipment of hydraulic hose application. An icon of port equipment of hydraulic hose application. An icon of petroleum equipment of hydraulic hose application. An icon of high way construction equipment of hydraulic hose application. An icon of marine equipment of hydraulic hose application. An icon of coal mine equipment of hydraulic hose application. An icon of building equipment of hydraulic hose application. An icon of machine tool equipment of hydraulic hose application.
German Technology Equipment German Technology Equipment
Product Series:
  • DME&JDE KONIG FLEX Series Products

    -55 °C / +155 °C

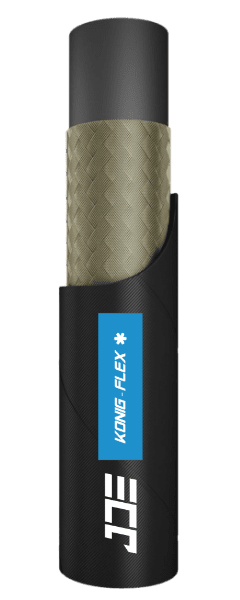

An 1SN fluid hydraulic hose.
  • An icon of flexible hoses inner tubes
    Internal hose:

    Synthetic rubber, extruded whole without joints, of uniform thickness

  • An icon of flexible hoses reinforcement
    Reinforcement:
    • 1 layer of steel wire braid
  • An icon of flexible hoses outer tubes
    Covering:

    Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions

  • An icon of flexible hoses fittings
    Fittings:
    • Ferrule: No-skive Type DPF2T
    • Insert: DPX1XX (X: Can choose)
    • Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved
An 1SN fluid hydraulic hose.
  • An icon of flexible hoses working pressure
    Working Pressure:

    40–250 Bar / 580–3625 PSI

  • An icon of flexible hoses impulse
    Impulse times:

    ≥ 150,000 Times

  • An icon of flexible hoses working temperature
    Temperature
    • -50 °C to +100 °C (intermittent -55 °C or +120 °C)
    • 0 °C to +70 °C for water based fluids
    • 0 °C to +70 °C hot air
    • Prolonged operation at extreme temperatures will reduce hoses life
  • An icon of flexible hoses recommend fluid
    Media
    • Mineral and biological oils, glicol-water based, water, lubricants
Specification
Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DME Code
KON 211101-05 -03 4.8 3/16'' 4.6-5.4 9.0-10.0 12.5 MAX. 250 3625 1000 14500 90 0.240 50/100 DPF2T-03
KON 211101-06 -04 6.4 1/4'' 6.2-7.0 10.6-11.6 14.1 MAX. 225 3262.5 900 13050 100 0.255 50/100 DPF2T-04
KON 211101-08 -05 8.0 5/16'' 7.7-8.5 12.1-13.3 15.7 MAX. 215 3117.5 860 12470 115 0.304 50/100 DPF2T-05
KON 211101-10 -06 9.5 3/8'' 9.3-10.1 14.5-15.7 18.1 MAX. 180 2610 720 10440 130 0.390 50/100 DPF2T-06
KON 211101-12 -08 12.7 1/2'' 12.3-13.5 17.5-19.1 21.4 MAX. 160 2320 640 9280 180 0.472 50/100 DPF2T-08
KON 211101-16 -10 16.0 5/8'' 15.5-16.7 20.6-22.2 24.5 MAX. 130 1885 520 7540 200 0.581 50/100 DPF2T-10
KON 211101-19 -12 19.0 3/4'' 18.6-19.8 24.6-26.2 28.5 MAX. 105 1522.5 420 6090 240 0.690 50/100 DPF2T-12
KON 211101-25 -16 25.4 1'' 25.0-26.4 32.5-34.1 36.6 MAX. 88 1276 352 5104 300 0.830 50/100 DPF2T-16
KON 211101-32 -20 31.8 1-1/4'' 31.4-33.0 39.3-41.7 44.8 MAX. 63 913.5 252 3654 420 1.325 20/40 DPF2T-20
KON 211101-38 -24 38.1 1-1/2'' 37.7-39.3 45.6-48.0 52.1 MAX. 50 725 200 2900 500 1.500 20/40 DPF2T-24
KON 211101-51 -32 50.8 2'' 50.4-52.0 58.7-61.7 65.5 MAX. 40 580 160 2320 630 1.875 20/40 DPF2T-32
Marking / Layline (Printing, Ink, Embossed)
A 1SN flexible hose is marked with the important information: brand, standard, sizes and part number.

Cover Type: Wrapped

Packing Type: Roll, Pallet, Reel

Outward Appearance: Black
